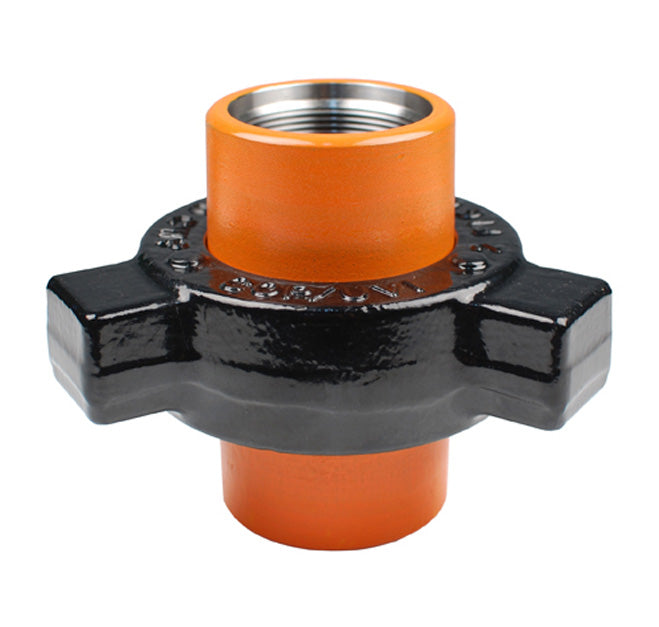

HUT602-3 by Kuriyama | HUT602 Series | Threaded Hammer Union | Figure 602 | 3" Size | 6000 PSI CWP | Carbon Steel

Save $46.79

$161.35

$161.35 - $161.35

$161.35

$114.56

$114.56 - $114.56

$114.56

Kuriyama of America Inc.
HUT602 Series | Threaded Hammer Union | Figure 602

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT602-3 Kuriyama
Series:	HUT602 Series
Shape (Orientation):	Straight
Ends Configuration:	3in Female NPT, 3in Female NPT, Some Ends Match
Material(s):	Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).
Figure 602 supplied with specially designed Buna-N lip type elastomer seal, which protects metal-to-metal sealing surfaces and reduces line flow turbulence.

What are the Materials?

Body: AISI 1040 Carbon Steel.
Nut: AISI 1040 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT602-1	1"	6000 PSI	3.75 lbs
HUT602-2	2"	6000 PSI	12.90 lbs
HUT602-3	3"	6000 PSI	22.80 lbs
HUT602-4	4"	6000 PSI	37.04 lbs
