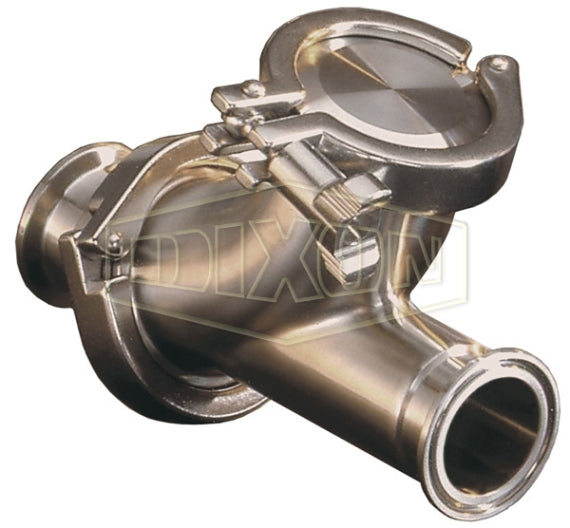

HYCVP200CCAA by Dixon Valve | Sanitary 2" HYC-Series Y-Ball Check Valve | Clamp x Clamp | 316L Stainless Steel | FKM Elastomer | PTFE Ball

Save $54.36

$489.39

$489.39 - $489.39

$489.39

$435.03

$435.03 - $435.03

$435.03

Dixon Valve & Coupling Sanitary
HYC Series Y - Ball Check Valve

Quantity

Specifications for Variant SKU: HYCVP200CCAA Dixon
Series:	HYC Series
Shape (Orientation):	Y
Ends Configuration:	2in Sanitary Flange
Material(s):	316L Stainless Steel
Seal Material(s):	FKM

Features:
Two-piece construction Replaceable seat Can be serviced in field (no special tools required) Material: 316L Stainless Steel
Specifications:
Operating temperature range: 15°F to 200°F (-9°C to 93°C) Maximum operating pressure: 150 PSI Internal product contact surface finish = 32R_a

Part Number	Size	Elastomer (Seal Material)	Ball
HYCVP150CCAA	1-1/2"	FKM	PTFE
HYCVP200CCAA	2"	FKM	PTFE
HYCVP250CCAA	2-1/2"	FKM	PTFE
HYCVP300CCAA	3"	FKM	PTFE

Repair and Seal Kits:
Repair kit contains: (1) EPDM cap gasket (1) PTFE ball (1) EPDM/CF8M seat Seal kit contains: (1) EPDM cap gasket (1) EPDM/CF8M seat FKM seal kit contains: (1) FKM cap gasket (1) FKM /CF8M seat

Replacement Parts
Size	Body Only	Inlet Body Only	EPDM Seat Only	Buna Ball Only	EPDM Ball Only	EPDM/PTFE Repair Kit	FKM/PTFE Repair Kit	EPDM Seal Kit	FKM Seal Kit	PTFE Ball Only	FKM Ball Only
1-1/2"	HYC-1-150	HYC-2-150	-	HYC-BB150	HYC-EB150	-	HYC-RKV150	HYC-SKE150	HYC-SKV150	HYC-TB150	HYC-VB150
2"	HYC-1-200	HYC-2-200	HYC-7E-200	HYC-BB200	-	HYC-RKE200	HYC-RKV200	HYC-SKE200	HYC-SKV200	HYC-TB200	HYC-VB200
2-1/2"	HYC-1-250	-	-	HYC-BB250	HYC-EB250	HYC-RKE250	HYC-RKV250	HYC-SKE250	HYC-SKV250	HYC-TB250	HYC-VB250
3"	HYC-1-300	HYC-2-300	-	HYC-BB300	-	-	HYC-RKV300	HYC-SKE300	HYC-SKV300	HYC-TB300	HYC-VB300

Dimensions

Valve Size	Clamp & Cap Size	A	B	C	D	E	F	G	Ball Diameter	Weight
1-1/2"	2"	7.50"	3.30"	1.36"	1.87"	1.98"	2.51"	0.16"	1.6"	4.9 lbs
2"	2-1/2"	8.50"	3.90"	1.86"	2.33"	2.51"	3.04"	0.16"	2.1"	6.6 lbs
2-1/2"	3"	10.00"	4.50"	2.37"	2.87"	3.04"	3.57"	0.16"	2.7"	10.5 lbs
3"	4"	11.50"	5.30"	2.87"	3.83"	3.57"	4.68"	0.16"	3.60"	17.5 lbs

All dimensions are approximate. Engineering dimensions are available upon request. Specifications are subject to change without notice.
