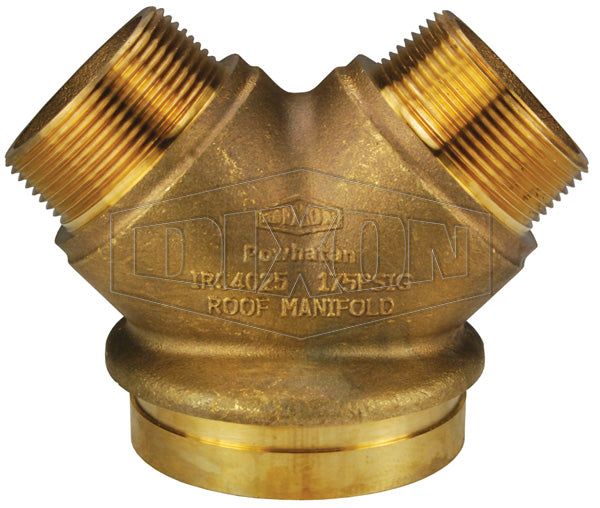

IRC4025GF Dixon Cast Brass Straight Two Way Male Outlet - Roof Connection - Back Outlet - 4" Groove Inlet x Two 2-1/2" Male NST(NH) Outlets (Global)

Name: IRC4025GF Dixon Cast Brass Straight Two Way Male Outlet - Roof Connection - Back Outlet - 4" Groove Inlet x Two 2-1/2" Male NST(NH) Outlets (Global)
Brand: Dixon
SKU: IRC4025GF Dixon
Price: 199.51 USD
Availability: InStock

Save $133.01

$332.52

$332.52 - $332.52

$332.52

$199.51

$199.51 - $199.51

$199.51

Dixon Fire Fittings
Roof Connections - Back Outlet - Cast Brass

Used to create roof connections, fire pump test connections, wall hydrants or sidewalk (free standing) hydrants.

Specifications for Variant SKU: IRC4025GF Dixon
Shape (Orientation):	Y
Ends Configuration:	4in Grooved End, 2-1/2in Male NST, 2-1/2in Male NST, Some Ends Match
Material(s):	Brass

Features:
Provides 250 GPM minimum per outlet. UL listed. Maximum operating pressure: 175 PSI at 70°F (21°C).


Size	A	B	C
4" x 2-1/2" x 2-1/2"	7-7/8"	5-3/16"	5-1/4"
6" x 2-1/2" x 2-1/2"	8-3/16"	6-3/8"	7-5/8"

Part Number	Inlet	(2) Outlets	Weight (Lbs.)
IRC4025*	4" Pipe	2-1/2" Male NPT	9.5000
FRC4025	4" Pipe	2-1/2" Male NPT	8.1000
IRC4025F*	4" Pipe	2-1/2" Male NST(NH)	9.5000
FRC4025F	4" Pipe	2-1/2" Male NST(NH)	8.1000
FRC6025	6" Pipe	2-1/2" Male NPT	16.4800
FRC6025F	6" Pipe	2-1/2" Male NST(NH)	14.1900
IRC4025GF*	4" Groove	2-1/2" Male NST(NH)	7.0500

* Parts are Imported, all others made in the USA
