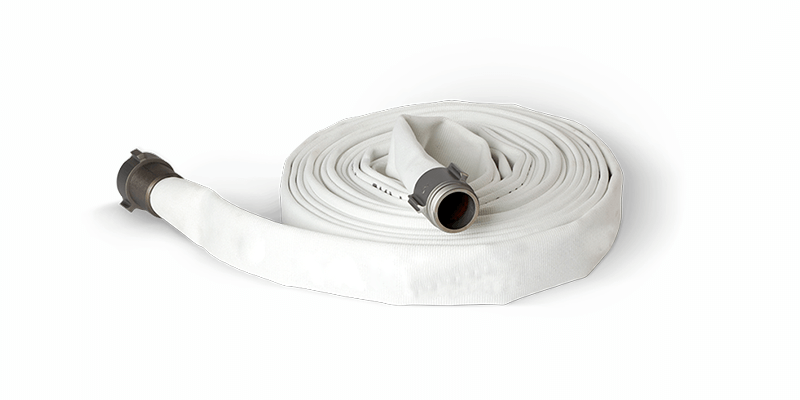

ISJ15X50W15N by Snap-Tite | ISJ Series | Single Jacket Hose Assembly | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Couplings | 250 PSI | White | 50ft Length
Snap-Tite Hose
ISJ™ - POLYESTER SINGLE JACKET HOSE
Package Quantity: 50 FT
Snap-Tite Hose
ISJ™ - POLYESTER SINGLE JACKET HOSE
Package Quantity: 50 FT
| Specifications for Variant SKU: ISJ15X50W15N Snap-Tite | |
|---|---|
| Brand: | Firequip |
| Series: | ISJ Series |
| Hose Color(s): | White |
| Internal Diameter: | 1-1/2in |
| Tubing Construction: | EPDM |
| Cover Construction: | Polyester |
| Ends Configuration: | 1-1/2in Male NH, 1-1/2in Female NH |
| Material(s): | Aluminum |
| Applicable Specs & Approvals: | NFPA 1961 |
| Model: | ISJ | ||
|---|---|---|---|
| Basic Construction: | Single-jacketed, polyester, EPDM rubber-lined fire hose | ||
| Colors: | White (uncoated) | ||
| Application: | General industrial and construction use, mill discharge, in-plant fire protection, wash down and maintenance tasks | ||
| Couplings: | Aluminum or Brass NH/NPSH Threaded Couplings | ||
| Description: | |||
| ISJ is a practical choice for a single-jacketed, polyester, EPDM rubber-lined fire hose. It can handle a variety of fluids, including some chemicals and petroleum-based products. With a working pressure of 250 PSI, it features aluminum or brass NH/NPSH threaded couplings and is suitable for general industrial and construction use, mill discharge, in-plant fire protection, and wash down and maintenance tasks. | |||
| White Uncoated | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size |
Bowl Size |
Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Coupling Type |
Testing Pressures (PSI) | Weight (LBS/50') |
||
| Service | Proof | Burst | Uncoupled | ||||||
| 1-1/2" | 1.75" | ISJ15X25W15N | ISJ15X50W15N | ISJ15X100W15N | Standard | 250 | 500 | 750 | 10 |
| 2-1/2" | 2.88" | ISJ25X25W25N | ISJ25X50W25N | ISJ25X100W25N | Standard | 250 | 500 | 750 | 20 |
*1-year warranty.
*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
