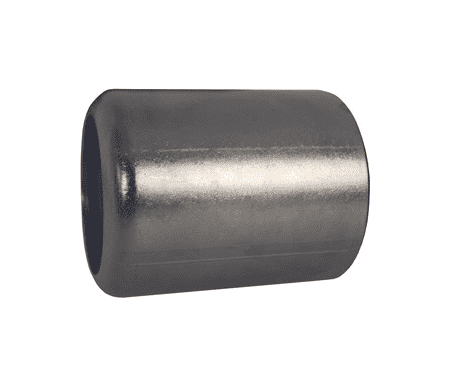

IXF16-1 Dixon 1" Plated Carbon Steel Internal Expansion Ferrule - Hose OD from 1-24/64" to 1-28/64" with a 1-7/16" Ferrule ID

IXF16-1 Dixon Valve 1" Plated Carbon Steel Internal Expansion Ferrule - Hose OD from 1-24/64" to 1-28/64" with a 1-7/16" Ferrule ID

Save $3.63 Save $3.63
$32.63
$32.63 - $32.63
$32.63
$29.00
$29.00 - $29.00
$29.00

Dixon Holedall Internal Expansion Ferrules - 1" - Plated Carbon Steel

Specifications for Variant SKU: IXF16-1 Dixon
Shape (Orientation): No Orientation
Material(s): Plated Carbon Steel
Applications:
  • Recommended applications of these fittings are: concrete pump hose, plaster and grout hose, oil suction and discharge hose, multi-purpose heavy duty air hose, jetting hose, barge loading hose and bottom loading hose.
  • For use with Holedall Internal Expansion Stems: ISM, IXH and IXV styles.
Features:
  • Internally expanded couplings are essential when maximum flow of media is important.
  • Reduces turbulence through hose.
  • Excellent sealing and retention characteristics.
  • Outperforms band clamps.
  • Easy and consistent installation.
  • Only one expansion tool is needed for each ID.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Internally Expanded Holedall Couplings are not to be used with plastic lined chemical hose.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Ferrule ID Weight (Lbs.)
IXF16-1 1" 1-24/64" 1-28/64" 1-7/16" 0.3900
IXF16-2 1" 1-28/64" 1-32/64" 1-1/2" 0.4225
IXF16-3 1" 1-32/64" 1-36/64" 1-9/16" 0.3900
