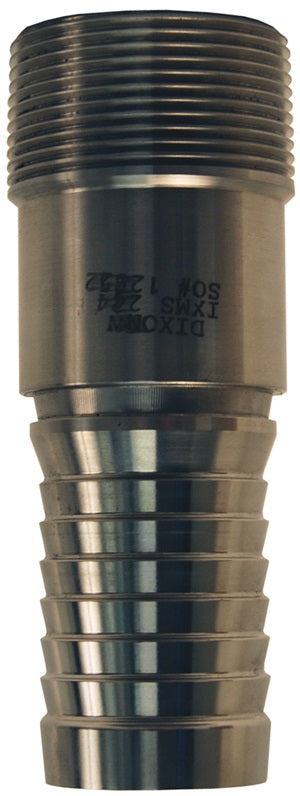

IXMS32 by Dixon Valve | Holedall® Internal Expansion (IX) Sanitary Hose Stem | 2" Male NPT x 2" Hose ID | 304 Stainless Steel

IXMS32 by Dixon Valve | Holedall® Internal Expansion (IX) Sanitary Hose Stem | 2" Male NPT x 2" Hose ID | 304 Stainless Steel

Save $11.62 Save $11.62
$104.57
$104.57 - $104.57
$104.57
$92.95
$92.95 - $92.95
$92.95

Dixon Valve
Holedall® Internal Expansion (IX) Sanitary Hose Stem | Male NPT x Hose Barb

Flow Chief Sanitary Fittings are used in the food, dairy and beverage industries, recommended where increased flow capacity is important.
Specifications for Variant SKU: IXMS32 Dixon
Brand: Holedall
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in Internal Expansion Hose End
Material(s): 304 Stainless Steel
Notes:
  • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules
Safety Notes:
  • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
304 Stainless Steel
Part Number		 Size
IXMS24 1-1/2"
IXMS32 2"
IXMS40 2-1/2"
IXMS48 3"
IXMS64 4"
