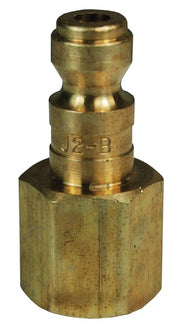

J2F2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 1/4" Female NPTF x 1/4" Automotive Interchange | Plug | Brass

Save $0.11

$2.48

$2.48 - $2.48

$2.48

$2.37

$2.37 - $2.37

$2.37

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Plug (Female Threads)

Quantity

Specifications for Variant SKU: J2F2-B Dixon
Series:	J-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Tru-Flate QD Interchange, 1/4in Female NPTF
Material(s):	Brass

Compatibility & Interchange:	Truflate Automotive Interchange Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:	Machined components are manufactured using solid bar stock.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

J-Series \| Automotive Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
J2F1	Plug/Male	1/4"	1/8" - 27 Female NPTF	Steel	1.34" (34.0mm)	0.65" (16.5mm)	9/16"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.56" (39.6mm)	0.79" (20.1mm)	11/16"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.56" (39.6mm)	0.79" (20.1mm)	11/16"	Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 10,500 PSI (724 bar)
J2F3	Plug/Male	1/4"	3/8" - 18 Female NPTF	Steel	1.56" (39.6mm)	1.01" (25.7mm)	7/8"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J3F2	Plug/Male	3/8"	1/4" - 18 Female NPTF	Steel	1.75" (44.5mm)	0.79" (20.1mm)	11/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.75" (44.5mm)	1.01" (25.7mm)	7/8"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J3F4	Plug/Male	3/8"	1/2" - 14 Female NPTF	Steel	1.91" (48.5mm)	1.16" (29.5mm)	1"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J4F3	Plug/Male	1/2"	3/8" - 18 Female NPTF	Steel	2.11" (53.6mm)	1.01" (25.7mm)	7/8"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
J4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	2.26" (57.4mm)	1.16" (29.5mm)	1"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
J4F6	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel	2.31" (58.7mm)	1.37" (34.8mm)	1-3/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
