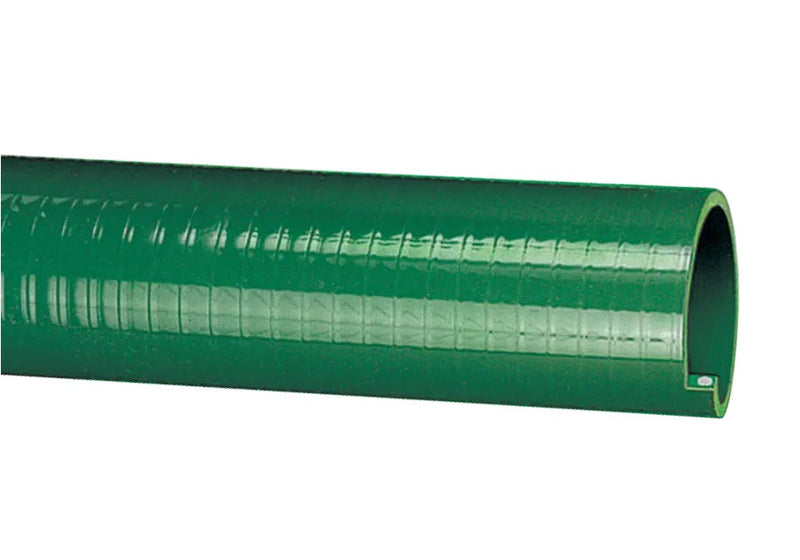

J300X200 Tigerflex® by Kuriyama | J™ Series | Standard-Duty Liquid Suction Hose | PVC | 3" ID | 3.43" OD | 200ft Length

J300X200 Tigerflex® by Kuriyama | J™ Series | Standard-Duty Liquid Suction Hose | PVC | 3" ID | 3.43" OD | 200ft Length

$0.00 - $0.00
$0.00
$1,111.20
$1,111.20 - $1,111.20
$1,111.20
p>Kuriyama of America Inc.
Tigerflex® | J™ Series | Standard-Duty Liquid Suction Hose | PVC

Designed for agricultural, mining, and construction use.

Ideal for liquid fertilizer transfer, irrigation and air seeder lines, dewatering and trash pumps, rock dusting, and standard-duty water suction.

Made in the USA.


Package Quantity: 200 Foot

Specifications for Variant SKU: J300X200 Kuriyama | 200 |
Brand: Tigerflex
Series: J Series
Hose Color(s): Green
Internal Diameter: 3in
Outer Diameter: 3.43in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable MSHA Standards, RoHS Compliant
MSHA-Approved PVC Suction Hose

Kuriyama Tigerflex™ J Series

MSHA-approved PVC suction hose designed for water transfer, agricultural liquid fertilizer, irrigation, dewatering, mining and other standard-duty applications.

✓

MSHA Approved

Flame-resistant for underground mine water transfer

⚙

PVC Helix

Rigid reinforcement supports suction service

☰

Cover Options

Smooth or convoluted design depending on size

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Agricultural liquid fertilizer
  • Air seeder lines
  • Drain lines
  • Irrigation lines
  • Mining applications
  • Rental and construction dewatering pumps
  • Trash pumps
  • Rock dusting
  • Standard-duty water suction
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Cover

Smooth or convoluted, depending on size

Temperature Range

-4°F (-20°C) to +150°F (+65°C)

Compliance

MSHA, phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • MSHA Approved — Approved by the Mine Safety and Health Administration for flame resistance when used as a water-transfer hose in underground mines.
  • Smooth Outer Cover on 3/4-Inch Through 4-Inch Sizes — Provides an increased pressure rating and a smooth surface for banding.
  • Convoluted Outer Cover on 6-Inch and 8-Inch Sizes — Provides increased hose flexibility.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
J075X100 3/4" 19.0 1.01" 25.6 110 PSI 70 PSI 28 in Hg 26 in Hg 3" 100 0.19
J100X100 1" 25.4 1.26" 32.0 85 PSI 60 PSI 28 in Hg 26 in Hg 3" 100 0.26
J125X100 1-1/4" 31.7 1.56" 39.6 85 PSI 60 PSI 28 in Hg 24 in Hg 4" 100 0.35
J150X100 1-1/2" 38.1 1.83" 46.5 70 PSI 50 PSI 28 in Hg 24 in Hg 5" 100 0.48
J200X100 2" 50.8 2.32" 59.0 65 PSI 45 PSI 28 in Hg 24 in Hg 7" 100 0.66
J200X200 2" 50.8 2.32" 59.0 65 PSI 45 PSI 28 in Hg 24 in Hg 7" 200 0.66
J250X100 2-1/2" 63.5 2.87" 73.0 65 PSI 45 PSI 28 in Hg 24 in Hg 8" 100 0.87
J300X100 3" 76.2 3.43" 87.0 60 PSI 40 PSI 28 in Hg 22 in Hg 10" 100 1.24
J300X200 3" 76.2 3.43" 87.0 60 PSI 40 PSI 28 in Hg 22 in Hg 10" 200 1.24
J400X100 4" 101.6 4.50" 114.7 50 PSI 35 PSI 28 in Hg 22 in Hg 15" 100 1.85
J600X100 6" 152.4 6.75" 171.4 40 PSI 25 PSI 28 in Hg 20 in Hg 30" 100 3.39
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100- and 200-foot lengths, depending on hose size.
