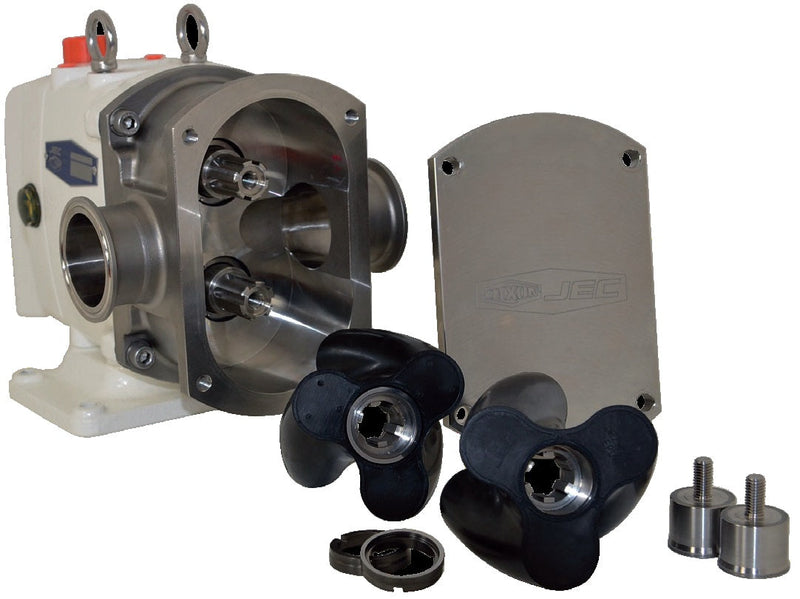

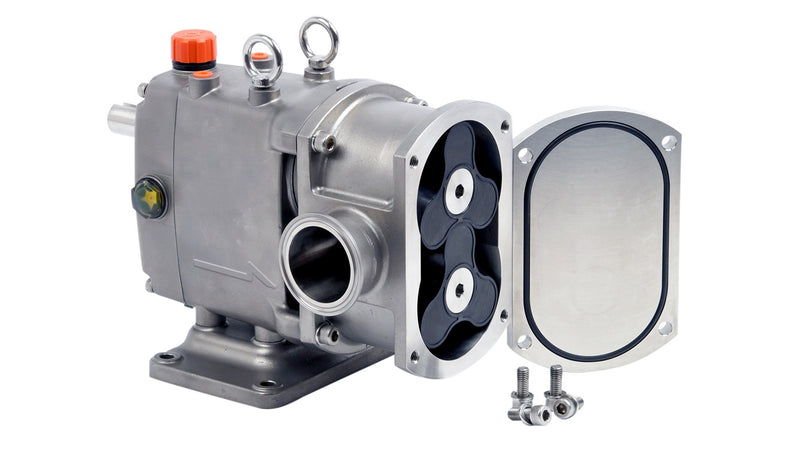

JRZW120 (JRZW-120) by Dixon Valve | JRZW-Series | Sanitary Rotary Lobe Wine Pump | 2" Clamp Port Size | 35 GPM Flow Max | 115 PSI

JRZW120 (JRZW-120) by Dixon Valve | JRZW-Series | Sanitary Rotary Lobe Wine Pump | 2" Clamp Port Size | 35 GPM Flow Max | 115 PSI

$0.00

Dixon Sanitary Pumps
JRZW-Series | Rotary Lobe Wine Pump

Note: This item is customizable, please contact us for a personalized quote.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: JRZW120 Dixon
Series: JRZL-Series
MAWP: 115
Material(s): 316L Stainless Steel
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards
Applications:
  • Must and lees
  • Transfer
  • Bottling
Available Options:
  • Optional Pump Cart: For portable applications the pump can be mounted on a cart with flat free wheels or casters. A Nord adjustable speed gearmotor is standard. Complete range of VFD options available.
Construction:
  • 316L stainless steel
  • EPDM rubber heli-lobe rotors
  • White epoxy painted cast iron gear box
  • Elastomers: EPDM (standard) & FKM
  • Product wetted steel part: EPDM, AISI 316L Stainless Steel (standard)
  • Product wetted elastomers: EPDM (standard)
  • Optional seals: Buna and FKM
Shaft Seals:
  • Seal type: Single and Double Mechanical, Single O-ring and Triple Lip-seal.
  • Maximum flushing water pressure: 7 PSI (0.5 bar).
  • Flushing water consumption: 30~60 cubic inches/min (0.25~0.5 liter/min).
  • Stationary seal ring material: Tungsten Carbide.
  • Rotating seal ring material: Tungsten Carbide (standard) or Silicon Carbide.
  • O-ring material: EPDM (standard).
  • Lip-seal Material: PTFE(Polytetrafluoroethylene).
Features:
  • Single mechanical seal (standard) TC vs TC.
  • Double mechanical seal.
  • Triple lip-seal with ceramic coated sleeve.
Literature:
Part Number Max Flow Maximum Operating Pressure
JRZW120
(JRZW-120)		 35 GPM 58 PSI
