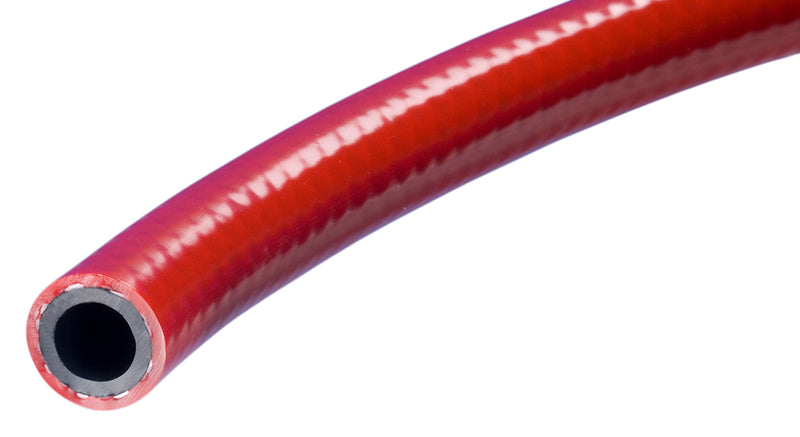

K1154-05X500 Kuri-Tec by Kuriyama | K1154 Series | General Purpose PVC Air & Water Hose | 5/16" ID | .625" OD | Red | 500ft Reel

K1154-05X500 Kuri-Tec by Kuriyama | K1154 Series | General Purpose PVC Air & Water Hose | 5/16" ID | .625" OD | Red | 500ft Reel

Save $117.38 Save $117.38
$381.38
$381.38 - $381.38
$381.38
$264.00
$264.00 - $264.00
$264.00

Kuri Tec® by Kuriyama
K1154 Series | General Purpose PVC Air & Water Hose

A general purpose PVC air and water hose for in plant and outdoor applications in temperate climate conditions.

Package Quantity: 500 Foot

Specifications for Variant SKU: K1154-05X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K1154 Series
Hose Color(s): Red
Internal Diameter: 0.31in
Outer Diameter: 0.625in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Applications: Transfer of air, water and mild water soluble chemicals.
Ideal for in-plant applications that require an economical general purpose hose.
Excellent air supply line for pneumatic tools and paint spray systems.
Tube: Black PVC compound. Reinforcement: High tensile strength yarn.
Cover: PVC compound. Pin-pricked. Service Temperature Range: +14°F (-10°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Economical, flexible and lightweight.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • Non-marking pin-pricked cover.
  • Silicone-free materials.
  • Complies with RMAfs Class B designation for medium/high oil resistance.
  • One piece lengths.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1154 Series | Red
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1154-04X100 - K1154-04X500 1/4" 6.4mm 0.500" 12.7mm 300 PSI 150 PSI
K1154-05X100 - K1154-05X500 5/16" 7.9mm 0.625" 15.9mm 300 PSI 150 PSI
K1154-06X100 - K1154-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 150 PSI
K1154-08X100 - K1154-08X500 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI
K1154-10X100 K1154-10X300 - 5/8" 15.9mm 0.895" 22.6mm 200 PSI 100 PSI
K1154-12X100 K1154-12X300 - 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI
K1154-16X100 K1154-16X300 - 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI
K1156 Series | Blue
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1156-04X100 - K1156-04X500 1/4" 6.4mm 0.500" 12.7mm 300 PSI 150 PSI
K1156-06X100 - K1156-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 150 PSI
K1156-08X100 - K1156-08X500 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI
K1156-10X100 K1156-10X300 - 5/8" 15.9mm 0.895" 22.6mm 200 PSI 100 PSI
K1156-12X100 K1156-12X300 - 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI
K1156-16X100 K1156-16X300 - 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
