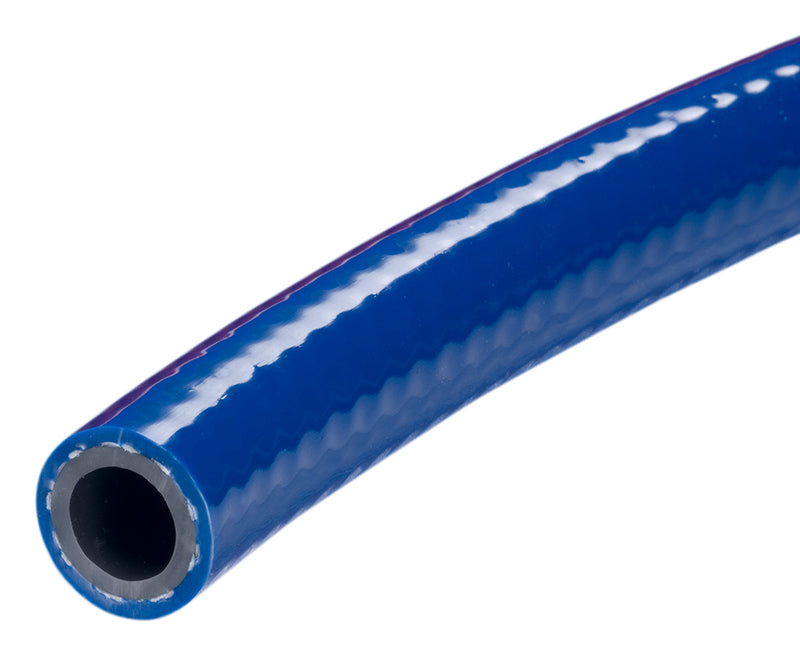

K1156-08X100 Kuri-Tec by Kuriyama | K1156 Series | General Purpose PVC Air & Water Hose | 1/2" ID | .750" OD | Blue | 100ft Length

Save $93.84

$153.84

$153.84 - $153.84

$153.84

$60.00

$60.00 - $60.00

$60.00

Kuri Tec® by Kuriyama
K1156 Series | General Purpose PVC Air & Water Hose

A general purpose PVC air and water hose for in plant and outdoor applications in temperate climate conditions.

Package Quantity: 100 Foot

Specifications for Variant SKU: K1156-08X100 Kuriyama \| 100 \|
Brand:	Kuri Tec
Series:	K1156 Series
Hose Color(s):	Blue
Internal Diameter:	0.50in - 1/2in
Outer Diameter:	0.750in
Tubing Construction:	PVC
Cover Construction:	PVC
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Applications:	Transfer of air, water and mild water soluble chemicals. Ideal for in-plant applications that require an economical general purpose hose. Excellent air supply line for pneumatic tools and paint spray systems.
Tube:	Black PVC compound.	Reinforcement:	High tensile strength yarn.
Cover:	PVC compound. Pin-pricked.	Service Temperature Range:	+14°F (-10°C) to +150°F (+65°C)
Specifications:	Phthalate Free
Economical, flexible and lightweight. Excellent abrasion resistance. U. V. and weather resistant. Non-marking pin-pricked cover. Silicone-free materials. Complies with RMAfs Class B designation for medium/high oil resistance. One piece lengths. Phthalate Free. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

K1154 Series \| Red
Part Number 100ft	Part Number 300ft	Part Number 500ft	Nominal ID		Nominal OD		Max. Working Pressure
Part Number 100ft	Part Number 300ft	Part Number 500ft	in	mm	in	mm	@70°F (20°C)	@122°F (50°C)
K1154-04X100	-	K1154-04X500	1/4"	6.4mm	0.500"	12.7mm	300 PSI	150 PSI
K1154-05X100	-	K1154-05X500	5/16"	7.9mm	0.625"	15.9mm	300 PSI	150 PSI
K1154-06X100	-	K1154-06X500	3/8"	9.5mm	0.625"	15.9mm	300 PSI	150 PSI
K1154-08X100	-	K1154-08X500	1/2"	12.7mm	0.750"	19.1mm	300 PSI	150 PSI
K1154-10X100	K1154-10X300	-	5/8"	15.9mm	0.895"	22.6mm	200 PSI	100 PSI
K1154-12X100	K1154-12X300	-	3/4"	19.1mm	1.030"	26.2mm	200 PSI	75 PSI
K1154-16X100	K1154-16X300	-	1"	25.4mm	1.313"	33.3mm	150 PSI	75 PSI

K1156 Series \| Blue
Part Number 100ft	Part Number 300ft	Part Number 500ft	Nominal ID		Nominal OD		Max. Working Pressure
Part Number 100ft	Part Number 300ft	Part Number 500ft	in	mm	in	mm	@70°F (20°C)	@122°F (50°C)
K1156-04X100	-	K1156-04X500	1/4"	6.4mm	0.500"	12.7mm	300 PSI	150 PSI
K1156-06X100	-	K1156-06X500	3/8"	9.5mm	0.625"	15.9mm	300 PSI	150 PSI
K1156-08X100	-	K1156-08X500	1/2"	12.7mm	0.750"	19.1mm	300 PSI	150 PSI
K1156-10X100	K1156-10X300	-	5/8"	15.9mm	0.895"	22.6mm	200 PSI	100 PSI
K1156-12X100	K1156-12X300	-	3/4"	19.1mm	1.030"	26.2mm	200 PSI	75 PSI
K1156-16X100	K1156-16X300	-	1"	25.4mm	1.313"	33.3mm	150 PSI	75 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
