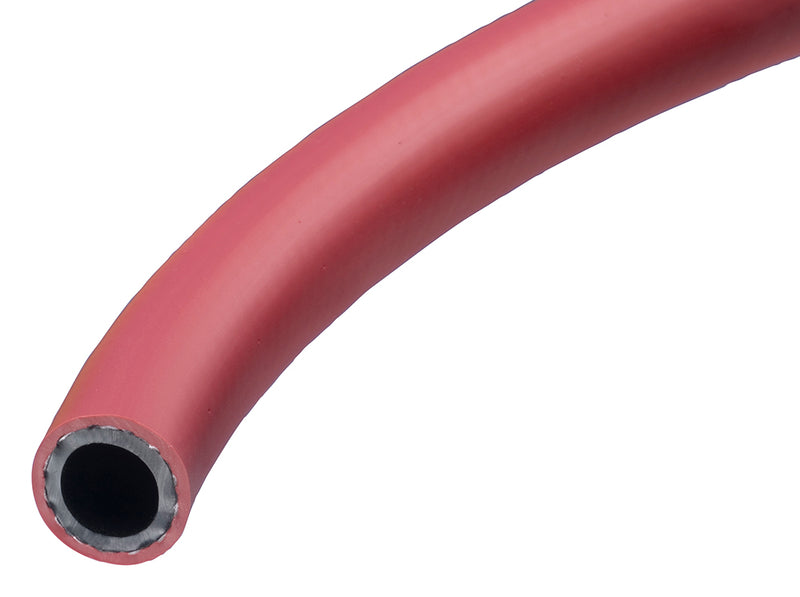

K1174-06X500 Kuri-Tec by Kuriyama | K1174 Series | General Service PVC Air & Water Hose | 3/8" ID | .600" OD | Red | 500ft Length

K1174-06X500 Kuri-Tec by Kuriyama | K1174 Series | General Service PVC Air & Water Hose | 3/8" ID | .600" OD | Red | 500ft Length

Save $88.62 Save $88.62
$304.62
$304.62 - $304.62
$304.62
$216.00
$216.00 - $216.00
$216.00

Kuri Tec® by Kuriyama
K1174 Series | General Service PVC Air & Water Hose

A general service PVC air and water hose for indoor or outdoor applications requiring a lightweight hose that can operate at lower temperatures.

Package Quantity: 500 Foot

Specifications for Variant SKU: K1174-06X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K1174 Series
Hose Color(s): Red
Internal Diameter: 0.375in - 3/8in
Outer Diameter: 0.600in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Applications: Transfer of air, water and mild water soluble chemicals.
Ideal for in-plant and outdoor applications that require an economical general purpose hose.
Excellent air supply line for pneumatic tools and paint spray systems.
Tube: Black PVC compound. Reinforcement: High tensile strength yarn.
Cover: PVC compound. Pin-pricked. Service Temperature Range: -15°F (-26°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Economical, lightweight, low temperature alternative to rubber hose.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • Non-marking pin-pricked cover.
  • Complies with RMA's Class B designation for medium/high oil resistance.
  • One piece lengths.
  • Formulated for low temperature flexibility.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1171 Series | Yellow
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- K1171-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI
- K1171-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI
K1171-08X300 - 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI
K1173 Series | Black
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- K1173-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI
- K1173-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI
K1173-08X300 - 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI
K1174 Series | Red
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- K1174-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI
- K1174-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI
K1174-08X300 - 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI
K1174-10X300 - 5/8" 15.9mm 0.860" 21.8mm 250 PSI 125 PSI
K1176 Series | Blue
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- K1176-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI
- K1176-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI
K1176-08X300 - 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
