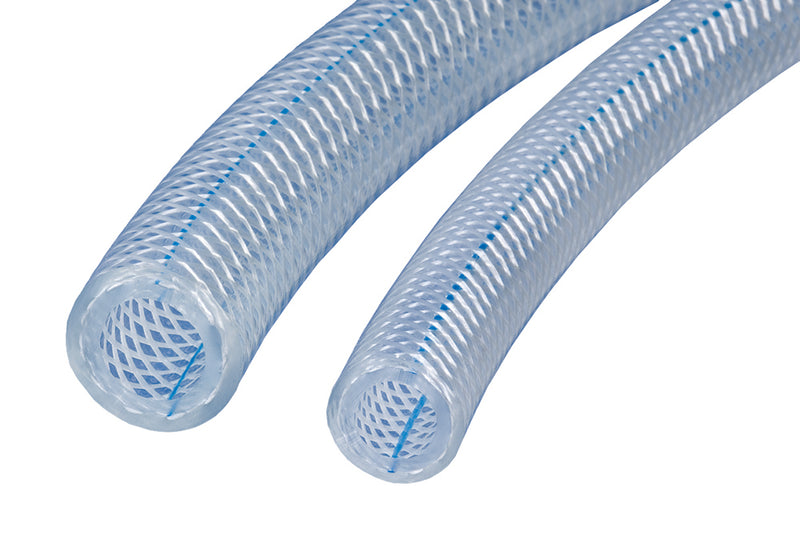

K3130-06X300 Kuri-Tec by Kuriyama | CLEARBRAID® | K3130 Series | Heavy Wall PVC Food & Beverage Hose | 3/8" ID | .625" OD | 300ft Length

K3130-06X300 Kuri-Tec by Kuriyama | CLEARBRAID® | K3130 Series | Heavy Wall PVC Food & Beverage Hose | 3/8" ID | .625" OD | 300ft Length

Save $75.83 Save $75.83
$345.83
$345.83 - $345.83
$345.83
$270.00
$270.00 - $270.00
$270.00

Kuri Tec® by Kuriyama
CLEARBRAID® | K3130 Series BF | Heavy Wall PVC Food & Beverage Hose

A heavier walled crystal clear Phthalate Free yarn reinforced hose suitable for a wide variety of food and beverage applications.

Package Quantity: 300 Foot

Specifications for Variant SKU: K3130-06X300 Kuriyama | 300 |
Brand: CLEARBRAID, Kuri Tec
Series: K3130 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in - 3/8in
Outer Diameter: 0.625in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, NSF 51, RoHS Compliant, UL 94V-0 Flammability Rating, Applicable USDA Requirements, USP - Class VI

SPECIFICATIONS

Applications: Food & beverage dispensing.
Deionized water.
Liquid food products.
Air and water lines.
Powdered food products.
Potable water transfer.
Air breathing lines.
Pneumatic lines.
Packaging machines.
Tube: Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF, UL, RoHS and USP Class VI criteria. Reinforcement: Reinforced with spiraled polyester yarn and longitudinal blue tracer yarns for identification.
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: 3A
FDA
NSF Certified Under Standard 51
Phthalate Free
RoHS
UL
USDA
USP
Other Features:
  • Constructed with Phthalate Free compounds.
  • NSF-51 certified material.
  • Crystal clear . allows visual confirmation of product flow.
  • Longitudinally-reinforced to reduce elongation under pressure.
  • Light weight.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Non-conductive.
  • One-piece lengths.
  • Resistant to chemicals.
  • Compound hardness 73±3 Shore "A".
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.
Part Number Nominal ID Nominal OD Max. Working
Pressure		 Length
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
K3130-02X100 1/8" 3.2mm 0.328" 8.3mm 350 PSI 200 PSI 100 ft
K3130-02X300 1/8" 3.2mm 0.328" 8.3mm 350 PSI 200 PSI 300 ft

K3130-03X100 3/16" 4.8mm 0.406" 10.3mm 350 PSI 200 PSI 100 ft
K3130-03X300 3/16" 4.8mm 0.406" 10.3mm 350 PSI 200 PSI 300 ft

K3130-04X100 1/4" 6.5mm 0.500" 12.7mm 350 PSI 200 PSI 100 ft
K3130-04X300 1/4" 6.5mm 0.500" 12.7mm 350 PSI 200 PSI 300 ft

K3130-05X100 5/16" 7.9mm 0.563" 14.3mm 275 PSI 160 PSI 100 ft
K3130-05X300 5/16" 7.9mm 0.563" 14.3mm 275 PSI 160 PSI 300 ft

K3130-06X100 3/8" 9.5mm 0.625" 15.9mm 275 PSI 145 PSI 100 ft
K3130-06X300 3/8" 9.5mm 0.625" 15.9mm 275 PSI 145 PSI 300 ft

K3130-08X100 1/2" 12.7mm 0.813" 20.7mm 250 PSI 130 PSI 100 ft
K3130-08X300 1/2" 12.7mm 0.813" 20.7mm 250 PSI 130 PSI 300 ft

K3130-10X100 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 100 ft
K3130-10X200 5/8" 15.9mm 1.000" 25.4mm 225 PSI 125 PSI 200 ft

K3130-12X100 3/4" 19.1mm 1.125" 28.6mm 200 PSI 120 PSI 100 ft
K3130-12X200 3/4" 19.1mm 1.125" 28.6mm 200 PSI 120 PSI 200 ft

K3130-16X100 1" 25.4mm 1.375" 34.9mm 150 PSI 85 PSI 100 ft
K3130-16X200 1" 25.4mm 1.375" 34.9mm 150 PSI 85 PSI 200 ft

K3130-20X50 1-1/4" 31.8mm 1.750" 44.5mm 125 PSI 75 PSI 50 ft
K3130-20X100 1-1/4" 31.8mm 1.750" 44.5mm 125 PSI 75 PSI 100 ft

K3130-24X50 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 65 PSI 50 ft
K3130-24X100 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 65 PSI 100 ft

K3130-32X50 2" 50.8mm 2.500" 63.5mm 75 PSI 35 PSI 50 ft
K3130-32X100 2" 50.8mm 2.500" 63.5mm 75 PSI 35 PSI 100 ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
