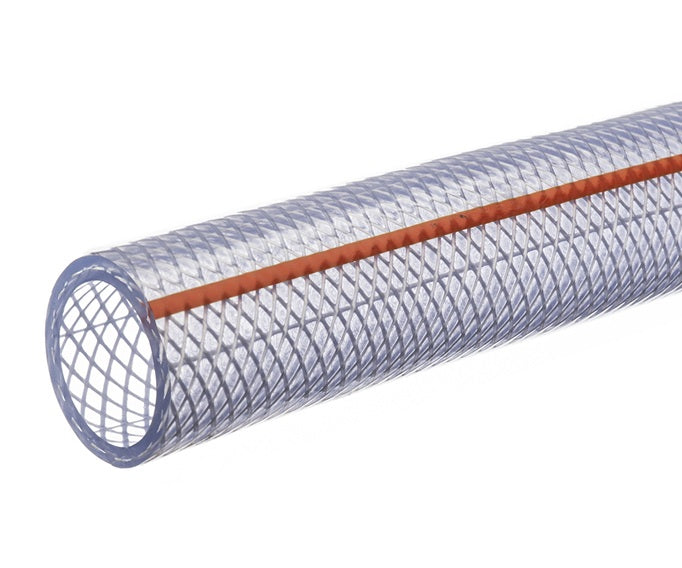

K3550-04X100 Kuri-Tec by Kuriyama | Clearbraid® Oil | K3550 Series | Oil Resistant Food & Beverage Transfer Hose | 1/4" Hose ID | .438" Hose OD | 100ft Length

K3550-04X100 Kuri-Tec by Kuriyama | Clearbraid® Oil | K3550 Series | Oil Resistant Food & Beverage Transfer Hose | 1/4" Hose ID | .438" Hose OD | 100ft Length

Save $20.28 Save $20.28
$74.28
$74.28 - $74.28
$74.28
$54.00
$54.00 - $54.00
$54.00

Kuri Tec® by Kuriyama
Clearbraid® Oil K3550 Series | Oil Resistant Food & Beverage Transfer Hose

For the transfer of oily food products such as olive, sunflower, soybean and peanut oils, as well as petroleum based oils.

Made in North America.

Package Quantity: 100 Foot

Specifications for Variant SKU: K3550-04X100 Kuriyama | 100 |
Brand: Clearbraid Oil, Kuri-Tec
Series: K3550 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.438in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: FDA 21 CFR Part 170.199, NSF 51, NSF 61, RoHS Compliant

SPECIFICATIONS

Applications: Transfer of oily food products such as olive, sunflower, soybean and peanut oils.
Transfer of petroleum based oils.
Tube: Clear oil resistant phthalate free PVC compound formulated with ingredients in compliance with applicable FDA(03) requirements. Meets NSF(13) and RoHS(16) criteria. Reinforcement: Reinforced with spiraled polyester yarn.
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: FDA
NSF
Phthalate Free
RoHS
Other Features:
  • High Oil Resistance - Meets ARPM (Association for Rubber Product Manufacturers) Class A rating for high oil resistance. Remains flexible when exposed to oils. Won't dry out or crack like other PVC hoses.
  • Fabric Reinforcement - High tensile strength, food grade, polyester yarn provides higher working pressures.
  • Good Chemical Resistance - Good resistance to alcohols and dilute acids. Not suggested for use with hydrocarbons. (Consult PVC chemical resistance guide for suitability).
  • Transparent - Allows for visual confirmation of material flow.
  • Glass-smooth Interior - Ensures smooth flow of material and reduces material buildup.
  • Non-marking Cover - Can be dragged over flooring without leaving marks typical of rubber hoses.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
Part Number
50ft		 Part Number
100ft		 Part Number
200ft		 Part Number
300ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- K3550-04X100 - K3550-04X300 1/4" 6.5mm 0.438" 11.1mm 250 PSI 150 PSI
- K3550-06X100 - K3550-06X300 3/8" 9.5mm 0.594" 15.1mm 225 PSI 125 PSI
- K3550-08X100 - K3550-08X300 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI
- K3550-12X100 K3550-12X200 - 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI
- K3550-16X100 K3550-16X200 - 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI
K3550-20X50 K3550-20X100 - - 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI
K3550-24X50 K3550-24X100 - - 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI
K3550-32X50 K3550-32X100 - - 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI
