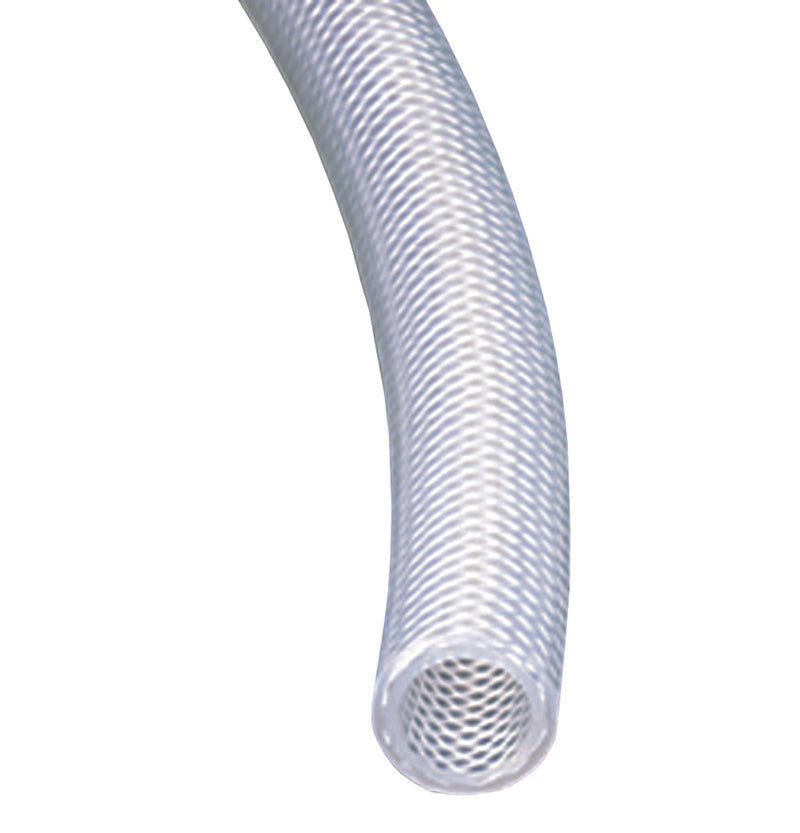

K4350-16X200 Kuri-Tec by Kuriyama | K4350 Series | Lawn & Agricultural Spray Hose | Yarn-Reinforced Translucent EVA | 1" ID | 1.313" OD | 200ft Length

K4350-16X200 Kuri-Tec by Kuriyama | K4350 Series | Lawn & Agricultural Spray Hose | Yarn-Reinforced Translucent EVA | 1" ID | 1.313" OD | 200ft Length

Save $134.90 Save $134.90
$560.90
$560.90 - $560.90
$560.90
$426.00
$426.00 - $426.00
$426.00

Kuri Tec® by Kuriyama
K4350 Series | Lawn & Agricultural Spray Hose | Yarn-Reinforced Translucent EVA

A yarn reinforced EVA hose suitable for low pressure spraying and transfer of agricultural chemicals.

Package Quantity: 200 Foot

Specifications for Variant SKU: K4350-16X200 Kuriyama | 200 |
Brand: Kuri Tec
Series: K4350 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.313in
Tubing Construction: Ethylene-Vinyl Acetate Copolymer
Cover Construction: Ethylene-Vinyl Acetate Copolymer
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Applications: Agricultural spray applications, including anhydrous ammonia fertilizer.
Low pressure lawn spray.
Low pressure transfer of liquids and gases, including chemicals.
Tube: Translucent EVA copolymer. Reinforcement: High tensile strength yarn.
Cover: Translucent EVA copolymer. Service Temperature Range: -30°F (-35°C) to +150°F (+65°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Highly flexible.
  • Higher working pressures than non-reinforced EVA tubing.
  • Excellent low temperature flexibility.
  • Excellent chemical-resistance.
  • Silicone-free.
  • One-piece lengths.
  • RoHS compliant.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number
200ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
- K4350-06X300 K4350-06X500 3/8" 9.5mm 0.594" 15.1mm 300 PSI 100 PSI
- K4350-08X300 K4350-08X500 1/2" 12.7mm 0.719" 18.3mm 250 PSI 75 PSI
- K4350-12X300 - 3/4" 19.1mm 0.970" 24.6mm 150 PSI 40 PSI
K4350-16X200 - - 1" 25.4mm 1.313" 33.4mm 150 PSI 30 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
