K5096-08X500 Kuri-Tec by Kuriyama | PNEU-THANE™ | K5096 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose | 1/2" ID | .688" OD | Blue | 500ft Reel

K5096-08X500 Kuri-Tec by Kuriyama | PNEU-THANE™ | K5096 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose | 1/2" ID | .688" OD | Blue | 500ft Reel

Save $299.09 Save $299.09
$1,451.09
$1,451.09 - $1,451.09
$1,451.09
$1,152.00
$1,152.00 - $1,152.00
$1,152.00

Kuri Tec® by Kuriyama

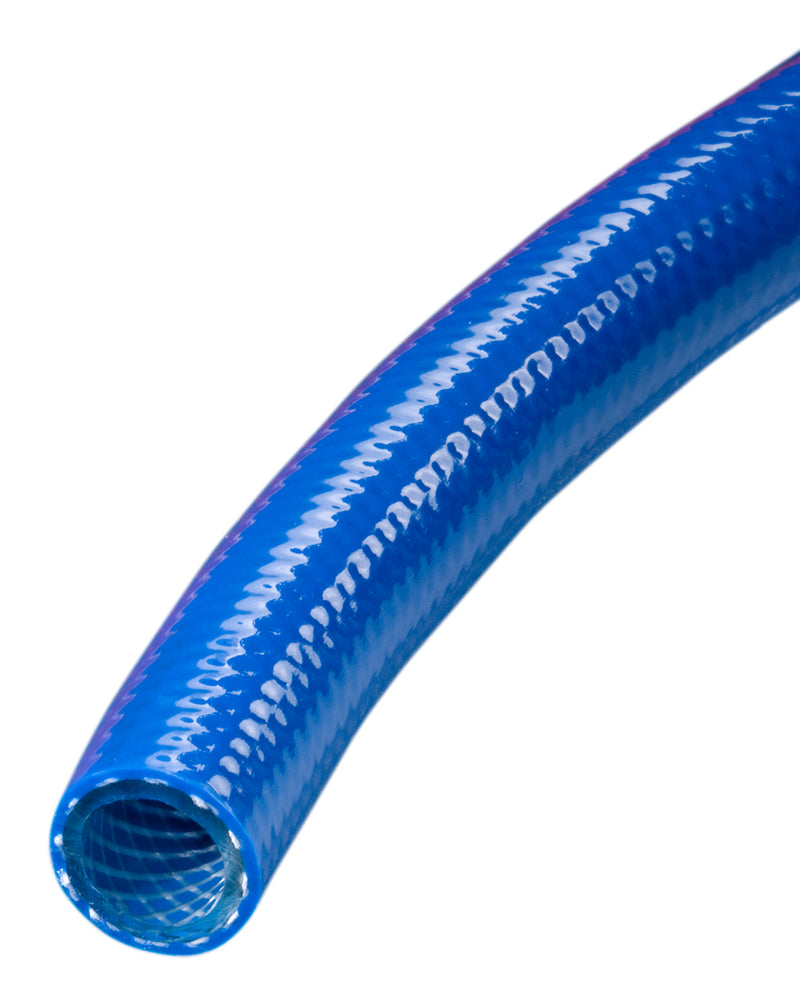

PNEU-THANE™ | K5096 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose

An extremely lightweight, tough, flexible pneumatic air tool hose that is suitable for a wide range of industrial and construction applications.

Package Quantity: 500 Foot

Specifications for Variant SKU: K5096-08X500 Kuriyama | 500 |
Brand: PNEU-THANE, Kuri Tec
Series: K5096 Series
Hose Color(s): Blue
Internal Diameter: 0.50in - 1/2in
Outer Diameter: 0.688in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Applications: For use with pneumatic air tools such as roofing nailers, sanders, chippers, impact wrenches, screwdrivers and staplers.
In-plant assembly line air service.
Automotive repair and body shops.
Construction sites.
Marine applications.
Air service for spray painting equipment.
Tube: Clear ether-based polyurethane. Reinforcement: High tensile strength yarn.
Cover: Ether-based polyurethane. Service Temperature Range: -40°F (-40°C) to +185°F (+85°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Very lightweight and flexible . . . helps to cut down on work-related injuries.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to oils and solvents.
  • High oil resistance, complies with ARPMfs Class A Designation.
  • Superior cut-resistance.
  • High abrasion-resistance... provides extra long life compared with conventional PVC or rubber air hoses.
  • Good resistance to hydrolysis and algae in warm water applications.
  • Silicone-free core and cover.
  • Non-conductive compounds.
  • Non-marking cover.
  • One-piece lengths.
  • RoHS(16) compliant.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K5090 Series | Aqua
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K5090-04X100 K5090-04X500 1/4" 6.5mm 0.395" 10.0mm 250 PSI 200 PSI
K5090-06X100 K5090-06X500 3/8" 9.5mm 0.560" 14.2mm 250 PSI 200 PSI
K5090-08X100 K5090-08X500 1/2" 12.5mm 0.688" 17.5mm 250 PSI 200 PSI
K5094 Series | Red
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K5094-04X100 K5094-04X500 1/4" 6.5mm 0.395" 10.0mm 250 PSI 200 PSI
K5094-06X100 K5094-06X500 3/8" 9.5mm 0.560" 14.2mm 250 PSI 200 PSI
K5094-08X100 K5094-08X500 1/2" 12.5mm 0.688" 17.5mm 250 PSI 200 PSI
K5096 Series | Blue
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K5096-04X100 K5096-04X500 1/4" 6.5mm 0.395" 10.0mm 250 PSI 200 PSI
K5096-06X100 K5096-06X500 3/8" 9.5mm 0.560" 14.2mm 250 PSI 200 PSI
K5096-08X100 K5096-08X500 1/2" 12.5mm 0.688" 17.5mm 250 PSI 200 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
