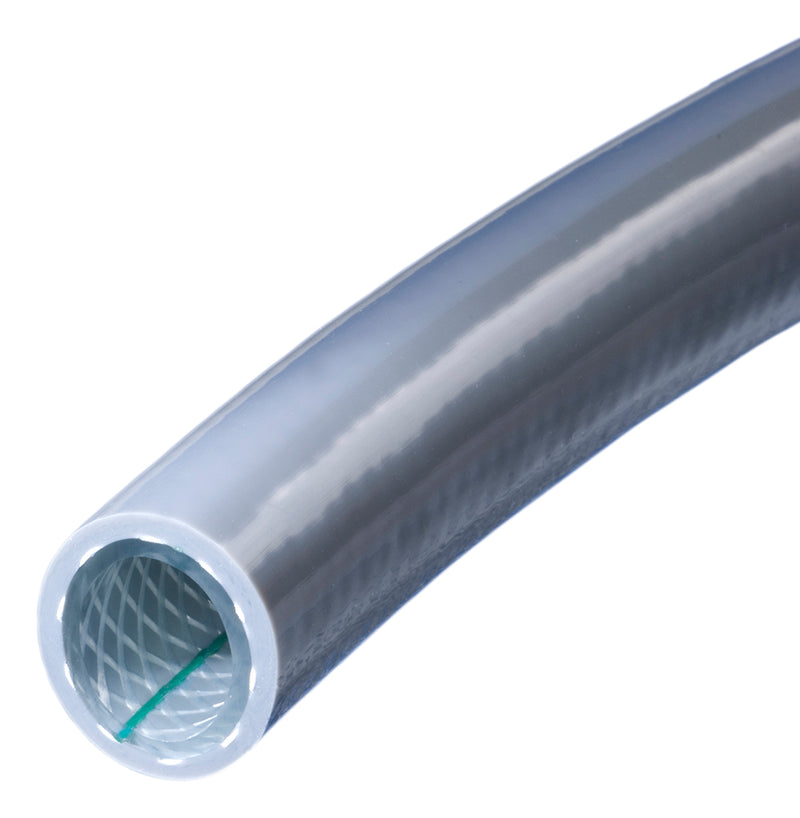

K6158-24X100 Kuri-Tec by Kuriyama | K6158 Series | High Purity PVC Potable Water Hose | 1-1/2" ID | 1.938" OD | 100 PSI | Gray | 100ft Length

K6158-24X100 Kuri-Tec by Kuriyama | K6158 Series | High Purity PVC Potable Water Hose | 1-1/2" ID | 1.938" OD | 100 PSI | Gray | 100ft Length

Save $142.94 Save $142.94
$635.54
$635.54 - $635.54
$635.54
$492.60
$492.60 - $492.60
$492.60

Kuri Tec® by Kuriyama
K6158 Series | High Purity PVC Potable Water Hose

A High Purity non-conductive NSF Certified, Phthalate Free hose with colored jacket which is ideal for potable water and deionized water transfer.

Package Quantity: 100 Foot

Specifications for Variant SKU: K6158-24X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: K6155 Series
Hose Color(s): Grey
Internal Diameter: 1.50in - 1-1/2in
Outer Diameter: 1.938in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 51, NSF/ANSI 61, NSF/ANSI 372, RoHS Compliant

SPECIFICATIONS

Applications: Transfer of potable water.
Transfer of deionized water.
Induction welding tubing lines.
Temporary residential water supply lines.
Water transfer lines for semiconductor manufacturing, where applicable.
Applications requiring a non-conductive hose.
Tube: Clear Phthalate Free PVC compound, formulated in compliance with FDA and NSF criteria. Reinforcement: High tensile strength yarn.
Cover: Phthalate Free PVC compound, available in two solid colors: K6155: White and K6158: Grey. Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: FDA
NSF Certified Under Standard 51.
NSF Certified to NSF/ANSI 61 & 372.
RoHS
Other Features:
  • Made with Phthalate Free PVC compounds certified under NSF-51/NSF-61.
  • White or gray jacket to reduce tendency for algae growth and U. V. degradation in warm sunny applications.
  • Non-marking cover.
  • Non-perforated cover.
  • Non-conductive compounds.
  • Silicone-free.
  • One-piece lengths.
  • RoHS compliant.
  • Phthalate Free.
K6155 Series | White
Part Number
200ft		 Part Number
300ft		 Nominal ID Nominal OD Max. Working
Pressure		 Approx Weight
Per Pkg
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- K6155-08X300 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI 40 lbs.
K6155-12X200 - 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 43 lbs.
K6155-16X200 - 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 59 lbs.
K6158 Series | Gray
Part Number
100ft		 Part Number
200ft		 Part Number
300ft		 Nominal ID Nominal OD Max. Working
Pressure		 Approx Weight
Per Pkg
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- - K6158-06X300 3/8" 9.5mm 0.594" 15.1mm 225 PSI 125 PSI 27 lbs.
- - K6158-08X300 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI 40 lbs.
- - K6158-12X200 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 43 lbs.
- K6158-16X200 - 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 59 lbs.
K6158-24X100 - - 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 64 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
