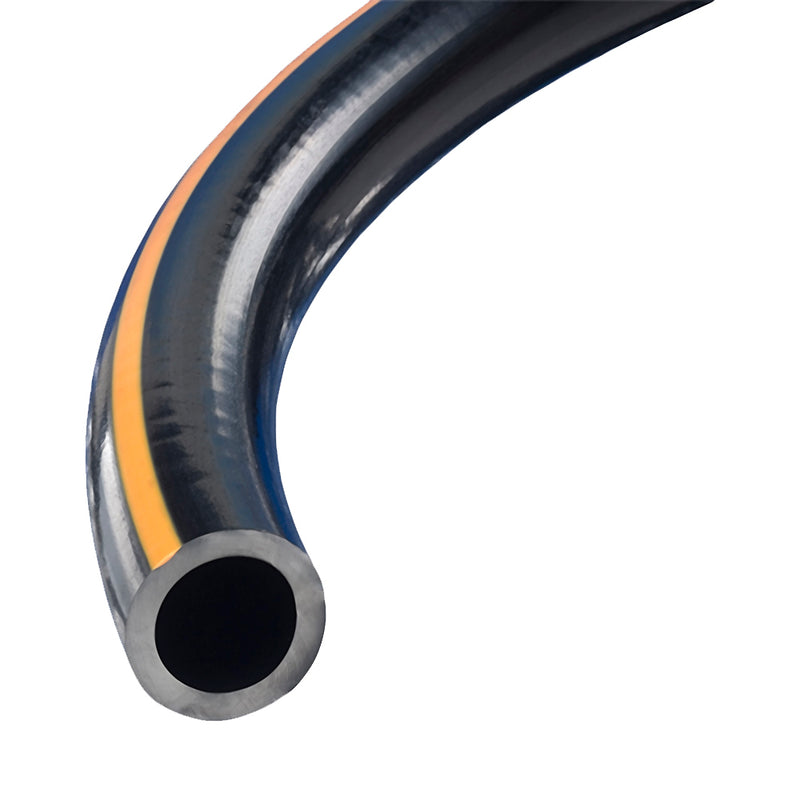

K7000-10X200 Kuri-Tec by Kuriyama | K7000 Series | Anti-Stat Blasting Tubing | 5/8" ID | 55/64" OD | Black | 200ft Length

K7000-10X200 Kuri-Tec by Kuriyama | K7000 Series | Anti-Stat Blasting Tubing | 5/8" ID | 55/64" OD | Black | 200ft Length

Save $108.84 Save $108.84
$485.64
$485.64 - $485.64
$485.64
$376.80
$376.80 - $376.80
$376.80

Kuri Tec® by Kuriyama
K7000 Series | Anti-Stat Blasting Tubing

A specially formulated anti-static PVC tubing for the loading of ammonium nitrate/fuel oil blasting agents used in the mining and construction industries.

Package Quantity: 200 Foot

Specifications for Variant SKU: K7000-10X200 Kuriyama | 200 |
Brand: Kuri Tec
Series: K7000 Series
Hose Color(s): Black
Internal Diameter: 0.625in - 5/8in
Outer Diameter: 0.859375in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Conductive Tube

SPECIFICATIONS

Applications: Bulk unloading of ammonium nitrate/fuel oil blasting agents in small diameter holes.
Successfully used for years with Oricafs blast hole chargers, intermediate loaders and the Penberthy Anoloader.
Mining and construction site blasting.
Tube: Specially-formulated anti-static PVC compound. Reinforcement: -
Cover: - Service Temperature Range: -30°F (-35°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Conductivity - effectively limits build-up of static electricity; provides path for its safe dissipation to ground.
  • Bleeds off static charges built up during pneumatic loading of Ammonium Nitrate/Fuel Oil mixtures.
  • Sufficient resistance - guards blasting circuit against stray electrical currents.
  • Wear resistance - smooth interior and exterior surfaces, combined with tough material formulation, provide good wear resistance.
  • Self-extinguishing characteristics.
  • Excellent flexibility - sufficiently flexible to handle easily, yet rigid enough to reach upwards into collars of steeply-inclined holes.
  • Easily identifiable - co-extruded continuous orange stripe makes tubing visible in underground lighting.
  • Embossed branding - provides lasting identification.
  • Phthalate Free.
  • NOTE: A new coil of tubing can have its pliancy restored by the application of heat before it is placed in service underground. This will facilitate handling and its attachment to pneumatic loading equipment. Steam or very hot water passed through the coiled tubing will remove the "set" from the new tubing and allow it to be straightened easily. The tubing should then be left to cool in the straight position.
Part Number Nominal ID Approx. OD Max. Working
Pressure
in mm in mm PSI MPa
K7000-10X200 5/8" 16mm 55/64" 22mm 120 PSI 0.83 MPa
K7000-12X200 3/4" 19mm 1-1/16" 27mm 120 PSI 0.83 MPa
K7000-16X300R 1" 25mm 1-21/64" 34mm 120 PSI 0.83 MPa
K7000-20X100 1-1/4" 32mm 1-5/8" 41mm 120 PSI 0.83 MPa
