K7130-06X100 Kuri-Tec by Kuriyama | POLYWIRE® | K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose | 3/8" ID | .625" OD | 100ft Length

Save $35.40

$156.00

$156.00 - $156.00

$156.00

$120.60

$120.60 - $120.60

$120.60

Kuri Tec® by Kuriyama

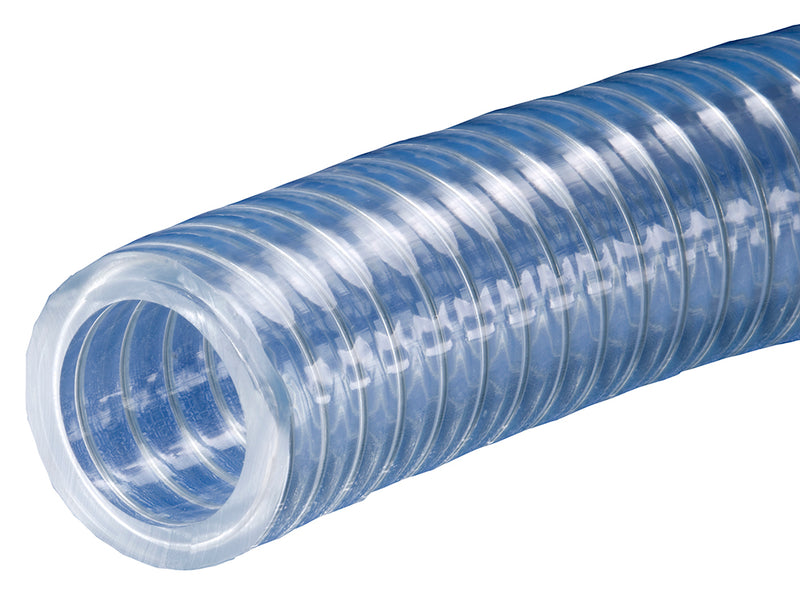

POLYWIRE® | K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose

Heavy wall food and beverage grade Phthalate Free vacuum/transfer hose with rated working pressures.

Has spiral wire reinforcement to prevent kinking or collapsing.

Package Quantity: 100 Foot

Specifications for Variant SKU: K7130-06X100 Kuriyama \| 100 \|
Brand:	POLYWIRE, Kuri Tec
Series:	K7130 Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.375in - 3/8in
Outer Diameter:	0.625in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, NSF 51, RoHS Compliant, UL 94V-0 Flammability Rating, Applicable USDA Requirements, USP - Class VI

SPECIFICATIONS

Other Features:
Applications:	Full vacuum lines. Industrial vacuum pumps. Food & beverage dispensing. Air and water supply lines. Car wash applications. Coolant lines. Air breathing lines. Pneumatic parts transfer. Deionized water systems.
Tube:	Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF, UL, USP, and RoHS criteria.	Reinforcement:	Reinforced with helically-wound spring steel wire.
Cover:	-	Service Temperature Range:	+25°F (-4°C) to +150°F (+65°C)
Specifications:	3A FDA NSF Certified Under Standard 51 Phthalate Free RoHS UL USDA USP
29.9" HG vacuum rating @ 70°F. Spiral wire reinforcement prevents kinking or collapsing... hose diameter will not expand under normal rated working pressures. Crystal clear . allows visual confirmation of product flow. Glass-smooth interior . reduces material buildup. Electrogalvanized helical steel wire can be used for static dissipation (see note below). Resistant to chemicals. Compound hardness 73±3 Shore "A". Self-extinguishing. Non-marking. Silicone-free. One-piece lengths. Phthalate Free! Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.

Part Number 50ft	Part Number 100ft	Nominal ID		Nominal OD		Max. Working Pressure		Min. Bend Radius
Part Number 50ft	Part Number 100ft	in	mm	in	mm	@70°F (20°C)	@122°F (66°C)	@70°F (20°C)
-	K7130-04X100	1/4"	6.4mm	0.500"	12.7mm	250 PSI	80 PSI	1"
-	K7130-06X100	3/8"	9.5mm	0.625"	15.9mm	150 PSI	80 PSI	1-1/2"
-	K7130-08X100	1/2"	12.7mm	0.813"	20.7mm	150 PSI	80 PSI	2"
-	K7130-10X100	5/8"	15.9mm	1.000"	25.4mm	150 PSI	65 PSI	2-1/2"
-	K7130-12X100	3/4"	19.1mm	1.125"	28.6mm	150 PSI	65 PSI	3"
-	K7130-16X100	1"	25.4mm	1.375"	34.9mm	100 PSI	50 PSI	4"
K7130-20X50	-	1-1/4"	31.8mm	1.750"	44.5mm	100 PSI	50 PSI	5"
K7130-24X50	-	1-1/2"	38.1mm	2.000"	50.8mm	100 PSI	35 PSI	6"
K7130-32X50	-	2"	50.8mm	2.500"	63.5mm	100 PSI	35 PSI	8"

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
