K7160-48X25 Kuri-Tec by Kuriyama | POLYSPRING® | K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 3" ID | 3.500" OD | 25ft Length

K7160-48X25 Kuri-Tec by Kuriyama | POLYSPRING® | K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 3" ID | 3.500" OD | 25ft Length

Save $241.86 Save $241.86
$673.71
$673.71 - $673.71
$673.71
$431.85
$431.85 - $431.85
$431.85

Kuri Tec® by Kuriyama

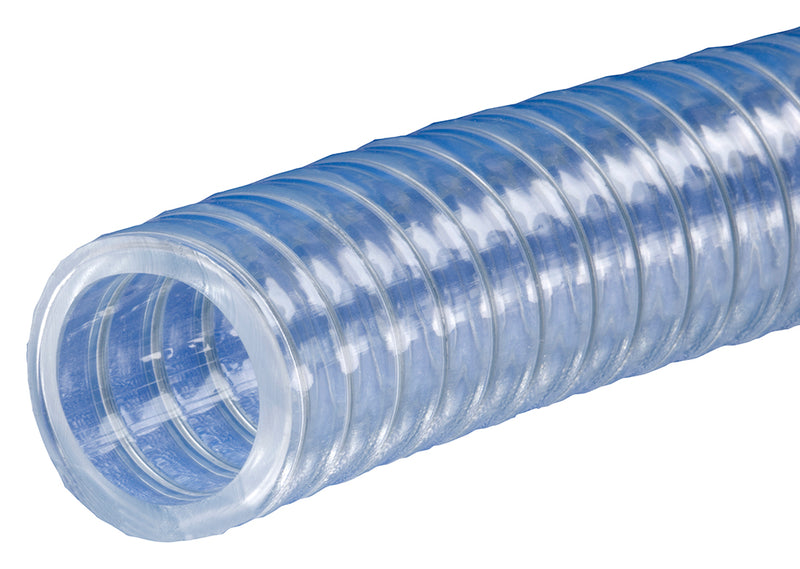

POLYSPRING® | K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose

Standard wall food and beverage grade vacuum/transfer hose with rated working pressures.

Has spiral wire reinforcement to prevent kinking or collapsing.

Package Quantity: 25 Foot

Specifications for Variant SKU: K7160-48X25 Kuriyama | 25 |
Brand: POLYSPRING, Kuri Tec
Series: K7160 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.500in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, NSF 51, RoHS Compliant, UL 94V-0 Flammability Rating, Applicable USDA Requirements, USP - Class VI

SPECIFICATIONS

Applications: Full vacuum lines.
Industrial vacuum pumps.
Food & beverage dispensing.
Air and water supply lines.
Pneumatic parts transfer.
Car wash applications.
Coolant lines.
Air breathing lines.
Deionized water systems.
Tube: Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF, UL, USP, and RoHS criteria. Reinforcement: Reinforced with helically-wound spring steel wire.
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: 3A
FDA
NSF Certified Under Standard 51
Phthalate Free
RoHS
UL
USDA
USP
Other Features:
  • 29.9" HG vacuum rating @ 70°F.
  • Spiral wire reinforcement prevents kinking or collapsing... hose diameter will not expand under normal rated working pressures.
  • Crystal clear . allows visual confirmation of product flow.
  • Glass-smooth interior . reduces material buildup.
  • Electrogalvanized helical steel wire can be used for static dissipation (see note below).
  • Resistant to chemicals.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • One-piece lengths.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure		 Min. Bend Radius
in mm in mm @70°F
(20°C)		 @122°F
(66°C)		 @70°F
(20°C)
- - K7160-04X100 1/4" 6.4mm 0.460" 11.7mm 150 PSI 70 PSI 1"
- - K7160-06X100 3/8" 9.5mm 0.600" 15.2mm 100 PSI 70 PSI 1-1/2"
- - K7160-08X100 1/2" 12.7mm 0.750" 19.1mm 100 PSI 70 PSI 2"
- - K7160-10X100 5/8" 15.9mm 0.891" 22.6mm 100 PSI 50 PSI 2-1/2"
- - K7160-12X100 3/4" 19.1mm 1.031" 26.2mm 70 PSI 50 PSI 3"
- - K7160-16X100 1" 25.4mm 1.297" 32.9mm 70 PSI 35 PSI 4"
- K7160-20X50 - 1-1/4" 31.8mm 1.609" 40.9mm 70 PSI 35 PSI 5"
- K7160-24X50 - 1-1/2" 38.1mm 1.860" 47.2mm 50 PSI 30 PSI 6"
- K7160-32X50 - 2" 50.8mm 2.391" 60.7mm 50 PSI 30 PSI 8"
- K7160-36X50 - 2-1/4" 57.2mm 2.750" 69.9mm 50 PSI 30 PSI 9"
- K7160-40X50 - 2-1/2" 63.5mm 3.000" 76.2mm 50 PSI 30 PSI 10"
K7160-48X25 K7160-48X50 - 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 12"

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
