K7300-24X25 Kuri-Tec by Kuriyama | POLYWIRE® PLUS | K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1-1/2" ID | 2.030" OD | 25ft Length

Save $61.52

$317.42

$317.42 - $317.42

$317.42

$255.90

$255.90 - $255.90

$255.90

Kuri Tec® by Kuriyama

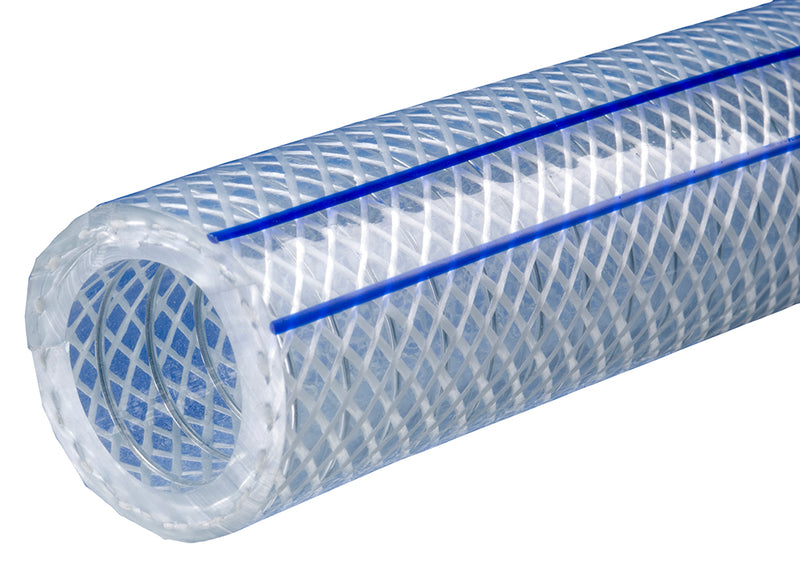

POLYWIRE® PLUS | K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose

A unique crystal clear Phthalate Free PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

Package Quantity: 25 Foot

Specifications for Variant SKU: K7300-24X25 Kuriyama \| 25 \|
Brand:	POLYWIRE PLUS, Kuri Tec
Series:	K7300 Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	1.50in - 1-1/2in
Outer Diameter:	2.030in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, NSF 51, RoHS Compliant, Applicable USDA Requirements

SPECIFICATIONS

Other Features:
Applications:	Pressure and vacuum applications which require excellent kink resistance. Ideal for applications which require the hose to withstand both high vacuum and pressure. Water transfer. Liquid food transfer.
Tube:	The inner food contact surface is made with Phthalate Free PVC compound formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF and RoHS criteria.	Reinforcement:	High tensile yarns and helically-wound spring steel wire.
Cover:	Crystal clear Phthalate Free PVC compound.	Service Temperature Range:	+15°F (-9°C) to +150°F (+65°C)
Specifications:	3A FDA NSF Certified Under Standard 51 Phthalate Free RoHS USDA
Wire helix reinforcement prevents kinking or collapsing¡¦ hose diameter will not expand under normal rated working pressures. 29.9in Hg vacuum rating @ 70°F. Electrogalvanized helical steel wire can be used for static dissipation (see Caution below). Yarn reinforcement provides higher working pressure. Heavy duty construction prevents hose O.D. from expanding and I.D. from collapsing. Crystal clear - allows visual confirmation of product flow Glass-smooth interior - reduces material buildup. Inner contact surface material is NSF certified for food applications (standard 51). It also meets other criteria such as 3A and USDA. Resistant to chemicals. Self-extinguishing. Non-marking. Silicone-free. Phthalate Free. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.

Part Number	Nominal ID		Nominal OD		Max. Working Pressure		Min. Bend Radius	Length
Part Number	in	mm	in	mm	@70°F (20°C)	@122°F (66°C)	@70°F (20°C)	Length
K7300-08X100	1/2"	12.7mm	0.906"	23.0mm	250 PSI	125 PSI	2"	100ft

K7300-12X25	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	2-1/2"	25ft
K7300-12X100	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	2-1/2"	100ft

K7300-16X25	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	3-1/2"	25ft
K7300-16X100	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	3-1/2"	100ft

K7300-20X25	1-1/4"	31.8mm	1.780"	45.2mm	175 PSI	87 PSI	4-1/2"	25ft
K7300-20X50	1-1/4"	31.8mm	1.780"	45.2mm	175 PSI	87 PSI	4-1/2"	50ft

K7300-24X25	1-1/2"	38.1mm	2.030"	51.6mm	175 PSI	87 PSI	5-1/2"	25ft
K7300-24X50	1-1/2"	38.1mm	2.030"	51.6mm	175 PSI	87 PSI	5-1/2"	50ft

K7300-32X25	2"	50.8mm	2.600"	66.0mm	150 PSI	75 PSI	7"	25ft
K7300-32X50	2"	50.8mm	2.600"	66.0mm	150 PSI	75 PSI	7"	50ft
