K7300-24X25 Kuri-Tec by Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1-1/2" ID | 2.030" OD | 25ft Length

K7300-24X25 Kuri-Tec by Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1-1/2" ID | 2.030" OD | 25ft Length

Save $28.44 Save $28.44
$284.44
$284.44 - $284.44
$284.44
$256.00
$256.00 - $256.00
$256.00

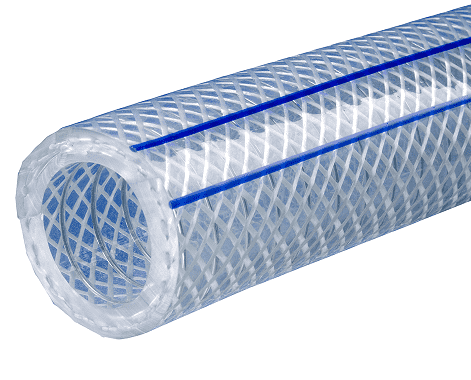

Kuriyama Kuri Tec® POLYWIRE® PLUS Series K7300 Hose Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose A unique crystal clear PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

Package Quantity: 25 FT

Specifications for Variant SKU: K7300-24X25 Kuriyama | 25 |
Brand: Kuri Tec
Series: K7300 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 2.03in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: Pressure and vacuum applications which require excellent kink resistance, Ideal for applications which require the hose to withstand both high vacuum and pressure, Water transfer, Liquid food transfer, SAE Rating: N/A
Other Ratings: N/A Tube: The inner food contact surface is made with PVC compound formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement: High tensile yarns and helically-wound spring steel wire Cover: N/A
Temperature Range: +15 deg. F (-9 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17)
Other Features:
  • Wire helix reinforcement prevents kinking or collapsing, hose diameter will not expand under normal rated working pressures.
  • 29.9" Hg vacuum rating @ 70 deg. F.
  • Electrogalvanized helical steel wire can be used for static dissipation (see below **).
  • Yarn reinforcement provides higher working pressure.
  • Heavy duty construction prevents hose O.D. from expanding and I.D. from collapsing.
  • Crystal clear - allows visual confirmation of product flow Glass-smooth interior - reduces material buildup.
  • Inner contact surface material is NSF certified for food applications (standard 51). It also meets other criteria such as 3A and USDA.
  • Resistant to chemicals (see chemical-resistance chart in Kuri Tec Catalog).
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg Min. Bend Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils @ 70 deg. F
K7300-08X100 1/2" 12.7mm .906" 23.0mm 250 PSI 125 PSI 100 ft. 26 lbs. 2"
K7300-08X50 1/2" 12.7mm .906" 23.0mm 250 PSI 125 PSI 50 ft. 13 lbs. 2"
K7300-08X25 1/2" 12.7mm .906" 23.0mm 250 PSI 125 PSI 25 ft. 6.5 lbs. 2"
K7300-12X100 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 100 ft. 40 lbs. 2-1/2"
K7300-12X50 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 50 ft. 20 lbs. 2-1/2"
K7300-12X25 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 25 ft. 10 lbs. 2-1/2"
K7300-16X100 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 100 ft. 53lbs. 3-1/2"
K7300-16X50 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 50 ft. 26.5lbs. 3-1/2"
K7300-16X25 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 25 ft. 13.3 lbs. 3-1/2"
K7300-20X50 1-1/4" 31.8mm 1.780" 45.2mm 175 PSI 87 PSI 50 ft. 37 lbs. 4-1/2"
K7300-20X25 1-1/4" 31.8mm 1.780" 45.2mm 175 PSI 87 PSI 25 ft. 18.5 lbs. 4-1/2"
K7300-24X50 1-1/2" 38.1mm 2.030" 51.6mm 175 PSI 87 PSI 50 ft. 43 lbs. 5-1/2"
K7300-24X25 1-1/2" 38.1mm 2.030" 51.6mm 175 PSI 87 PSI 25 ft. 43 lbs. 5-1/2"
K7300-32X50 2" 50.8mm 2.600" 66.0mm 150 PSI 75 PSI 50 ft. 64 lbs. 7"
K7300-32X25 2" 50.8mm 2.600" 66.0mm 150 PSI 75 PSI 25 ft. 32 lbs. 7"
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. ** Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
