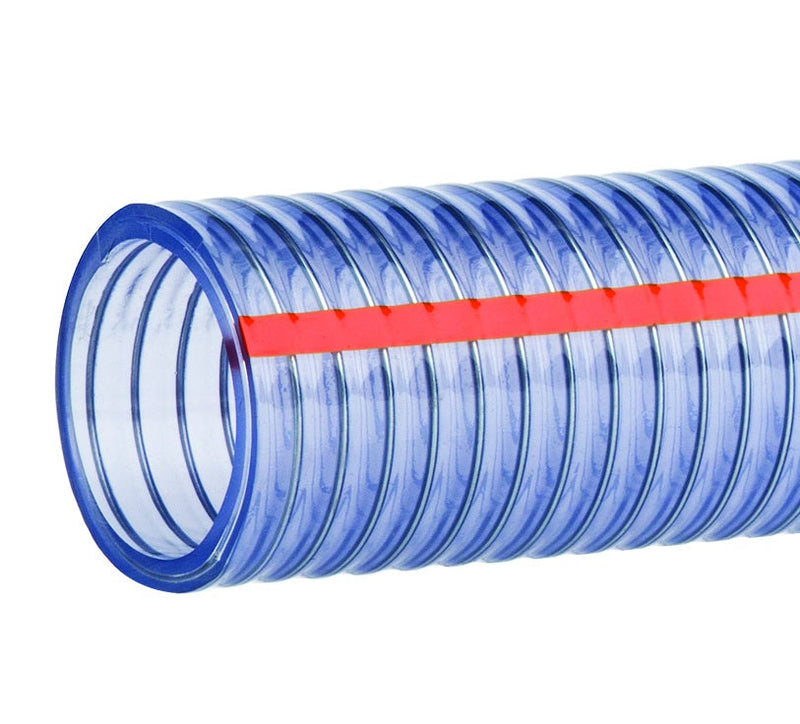

K7560-32X50 Kuri-Tec by Kuriyama | Polyspring® Oil | K7560 Series | Oil Resistant Food & Beverage Vacuum, Suction & Transfer Hose | 2" Hose ID | 2.391" Hose OD | 50ft Length

K7560-32X50 Kuri-Tec by Kuriyama | Polyspring® Oil | K7560 Series | Oil Resistant Food & Beverage Vacuum, Suction & Transfer Hose | 2" Hose ID | 2.391" Hose OD | 50ft Length

Save $241.68 Save $241.68
$671.88
$671.88 - $671.88
$671.88
$430.20
$430.20 - $430.20
$430.20

Kuri Tec® by Kuriyama
Polyspring® Oil K7560 Series | Oil Resistant Food & Beverage Vacuum, Suction & Transfer Hose

For the transfer of oily food products such as olive, sunflower, soybean and peanut oils, as well as petroleum based oils and grease suction.

Made in North America.

Package Quantity: 50 Foot

Specifications for Variant SKU: K7560-32X50 Kuriyama | 50 |
Brand: Polyspring Oil, Kuri-Tec
Series: K7560 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2in
Outer Diameter: 2.391in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: FDA 21 CFR Part 170.199, NSF 51, NSF 61, RoHS Compliant
Special Properties: Ground Wire in Hose

SPECIFICATIONS

Applications: Transfer of oily food products such as olive, sunflower, soybean and peanut oils.
Transfer of petroleum based oils.
Grease suction
Tube: Clear oil resistant phthalate free PVC compound formulated with ingredients in compliance with applicable FDA(03) requirements. Meets NSF(13) and RoHS(16) criteria. Reinforcement: Reinforced with helically-wound spring steel wire.
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: FDA
NSF
Phthalate Free
RoHS
Other Features:
  • High Oil Resistance - Meets ARPM (Association for Rubber Product Manufacturers) Class A rating for high oil resistance. Remains flexible when exposed to oils. Won't dry out or crack like other PVC hoses.
  • Steel Wire Reinforcement - Electrogalvanized steel wire reinforcement prevents kinking and collapsing.
  • Static Dissipative - Steel wire can be grounded to help prevent the build-up of static electricity for added safety (see below)
  • Good Chemical Resistance - Good resistance to alcohols and dilute acids. Not suggested for use with hydrocarbons. (Consult PVC chemical resistance guide for suitability)
  • Transparent - Allows for visual confirmation of material flow.
  • Glass-smooth Interior - Ensures smooth flow of material and reduces material buildup.
  • Non-marking Cover - Can be dragged over flooring without leaving marks typical of rubber hoses.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • Caution: This product is designed to help dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means.
Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure		 Vacuum
Rating		 Min. Bend
Radius
in mm in mm @70°F
(20°C)		 @122°F
(50°C)		 @70°F
(20°C)		 @70°F
(20°C)
K7560-08X50 K7560-08X100 1/2" 12.7mm 0.750" 19.1mm 100 PSI 70 PSI 29.9 in. Hg 2"
K7560-12X50 K7560-12X100 3/4" 19.1mm 1.031" 26.2mm 70 PSI 50 PSI 29.9 in. Hg 3"
K7560-16X50 K7560-16X100 1" 25.4mm 1.297" 32.9mm 70 PSI 35 PSI 29.9 in. Hg 4"
K7560-20X50 K7560-20X100 1-1/4" 31.8mm 1.609" 40.9mm 70 PSI 35 PSI 29.9 in. Hg 5"
K7560-24X50 K7560-24X100 1-1/2" 38.1mm 1.860" 47.2mm 50 PSI 30 PSI 29.9 in. Hg 6"
K7560-32X50 K7560-32X100 2" 50.8mm 2.391" 60.7mm 50 PSI 30 PSI 29.9 in. Hg 8"
K7560-40X50 - 2-1/2" 63.5mm 3.000" 76.2mm 50 PSI 30 PSI 29.9 in. Hg 10"
K7560-48X50 - 3" 76.2mm 3.500" 88.9 50 PSI 30 PSI 29.9 in. Hg 12"
