Kuri Tec® by Kuriyama

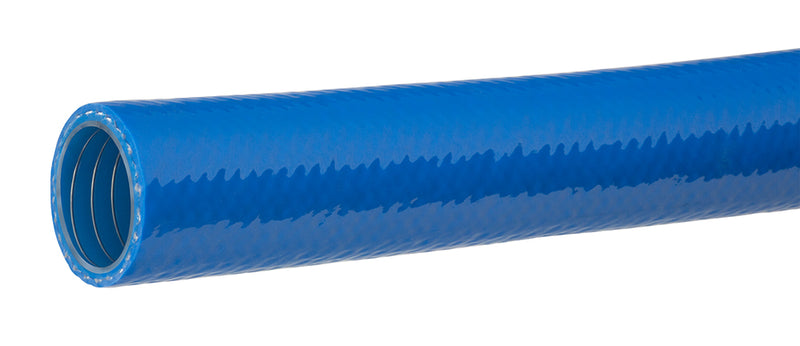

K-Tough™ K9296 Series | High Pressure Reinforced Suction & Discharge Hose

A high pressure suction & discharge hose for heavy duty industrial applications.

Made in North America.

Package Quantity: 50 Foot

Specifications for Variant SKU: K9296-40X50 Kuriyama \| 50 \|
Brand:	K-Tough, Kuri-Tec
Series:	K9296 Series
Hose Color(s):	Blue
Internal Diameter:	2.50in - 2-1/2in
Outer Diameter:	3.07in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	FDA 21 CFR Part 170.199, Applicable MSHA Standards, RoHS Compliant

SPECIFICATIONS

Other Features:
Applications:	Batch plants Constant flex applications Liquid chemical handling (Consult chemical resistance guide for suitability.) Mining applications (MSHA) Oil field water hauling Suction & discharge of water and slurries Tank trucks
Tube:	Clear phthalate free PVC core.	Reinforcement:	Galvanized steel wire helix, high tensile strength yarn.
Cover:	Blue phthalate free PVC cover.	Service Temperature Range:	-5°F (-20°C) to 150°F (+65°C)
Specifications:	FDA MSHA Phthalate Free RoHS
Food Grade Materials - Hose complies with applicable FDA requirements. Increased Pressure Rating - New heavy duty construction results in a highly durable product, designed for both indoor and demanding outdoor applications. Superior Flexibility - More flexible than other similar hoses for ease-of-use. High Cycle Strength - Designed to resist damage from constant flex applications. Abrasion Resistant Cover - Resists wear from being dragged on rough surfaces. Static Dissipative - Steel wire helps prevent the build-up of static electricity for added safety (see below). MSHA Accepted - Cover material accepted by MSHA as having met the requirements for acceptance of flame-resistant solid products taken into mines for hoses transferring air, oil, water or other fluids. Phthalate Free. Note: Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Note: This product is designed to help dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means. Actual service temperature range is application dependent. Working pressure decreases as temperature increases.

Part Number 50ft	Part Number 100ft	Part Number 120ft	Nominal ID		Nominal OD		Max. Working Pressure	Vacuum Rating (in. Hg)	Min. Bend Radius
Part Number 50ft	Part Number 100ft	Part Number 120ft	in	mm	in	mm	@70°F (20°C)	@70°F (20°C)	@70°F (20°C)
K9296-24X50	K9296-24X100	K9296-24X120	1.50"	38.1mm	2.03"	51.6mm	300 PSI	29.9 in. Hg	5.5"
K9296-32X50	K9296-32X100	K9296-32X120	2.00"	50.8mm	2.57"	65.3mm	275 PSI	29.9 in. Hg	7.0"
K9296-40X50	K9296-40X100	K9296-40X120	2.50"	63.5mm	3.07"	78.0mm	150 PSI	29.9 in. Hg	9.0"
K9296-48X50	K9296-48X100	K9296-48X120	3.00"	76.2mm	3.57"	90.7mm	150 PSI	29.9 in. Hg	11.0"
