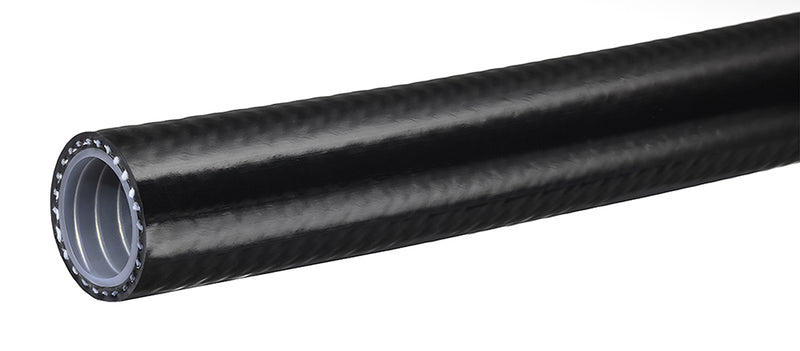

K9593-24X120 Kuri-Tec by Kuriyama | K-Tough™ Oil | K9593 Series | High Pressure Reinforced Suction & Discharge Hose | 1.50" Hose ID | 2.03" Hose OD | 120ft Length

Save $491.95

$2,107.63

$2,107.63 - $2,107.63

$2,107.63

$1,615.68

$1,615.68 - $1,615.68

$1,615.68

Kuri Tec® by Kuriyama
K-Tough™ Oil K9593 Series | High Pressure Reinforced Suction & Discharge Hose

A high pressure suction & discharge hose for heavy duty industrial applications.

Made in North America.

Package Quantity: 120 Foot

Specifications for Variant SKU: K9593-24X120 Kuriyama \| 120 \|
Brand:	K-Tough Oil, Kuri-Tec
Series:	K9593 Series
Hose Color(s):	Black
Internal Diameter:	1.50in - 1-1/2in
Outer Diameter:	2.03in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	FDA 21 CFR Part 170.199, Applicable MSHA Standards, RoHS Compliant

SPECIFICATIONS

Other Features:
Applications:	Batch plants Constant flex applications Liquid chemical handling (Consult PVC chemical resistance guide for suitability.) Mining applications (MSHA) Oil field water hauling Suction & discharge of water and slurries Tank trucks Transfer of petroleum and other oil based products
Tube:	Clear phthalate free PVC/polyurethane blend.	Reinforcement:	Galvanized steel wire helix, high tensile strength yarn.
Cover:	Black phthalate free PVC/polyurethane blend.	Service Temperature Range:	-5°F (-20°C) to 150°F (+65°C)
Specifications:	FDA MSHA Phthalate Free RoHS
Food Grade Materials - Hose complies with applicable FDA requirements. Increased Pressure Rating - New heavy duty construction resulting in a highly durable product, designed for both indoor and demanding outdoor applications. Superior Flexibility - More flexible than other similar hoses for ease-of-use. High Cycle Strength - Designed to resist damage from constant flex applications. Abrasion Resistant Cover - Resists wear from being dragged on rough surfaces. Static Dissipative - Steel wire helps prevent the build-up of static electricity for added safety (see below). Oil Resistant - Meets ARPM Class A (High oil resistance) rating. MSHA Accepted - Cover material accepted by MSHA as having met the requirements for acceptance of flame-resistant solid products taken into mines for hoses transferring air, oil, water or other fluids. Phthalate Free. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. Note: This product is designed to help dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means. Note: Actual service temperature range is application dependent. Working pressure decreases as temperature increases.

Part Number 50ft	Part Number 100ft	Part Number 120ft	Nominal ID		Nominal OD		Max. Working Pressure	Vacuum Rating (in. Hg)	Min. Bend Radius
Part Number 50ft	Part Number 100ft	Part Number 120ft	in	mm	in	mm	@70°F (20°C)	@70°F (20°C)	@70°F (20°C)
K9593-24X50	K9593-24X100	K9593-24X120	1.50"	38.1mm	2.03"	51.6mm	300 PSI	29.9 in. Hg	5.5"
K9593-32X50	K9593-32X100	K9593-32X120	2.00"	50.8mm	2.57"	65.3mm	275 PSI	29.9 in. Hg	7.0"
K9593-40X50	K9593-40X100	K9593-40X120	2.50"	63.5mm	3.07"	78.0mm	150 PSI	29.9 in. Hg	9.0"
K9593-48X50	K9593-48X100	K9593-48X120	3.00"	76.2mm	3.57"	90.7mm	150 PSI	29.9 in. Hg	11.0"
