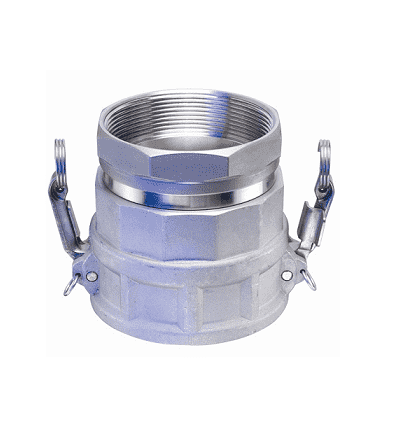

KAS-C601 by Kuriyama | Quick-Acting Swivel Coupling | Type D | 6" Aluminum Female Coupler x 6" 304 Stainless Steel Female NPT Swivel

KAS-C601 by Kuriyama | Quick-Acting Swivel Coupling | Type D | 6" Aluminum Female Coupler x 6" 304 Stainless Steel Female NPT Swivel

Save $103.35 Save $103.35
$543.90
$543.90 - $543.90
$543.90
$440.55
$440.55 - $440.55
$440.55

Kuriyama Couplings™ - Quick-Acting Swivel Couplings - Aluminum Female Coupler x 304 Stainless Steel Female NPT Swivel

Specifications for Variant SKU: KAS-C601 Kuriyama
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 6in Female Cam & Groove, 6in Female NPT
Material(s): Aluminum, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Female Coupler Female NPT Swivel Weight (Lbs.)
KAS-C401 4" 4" 5.2 lbs
KAS-C501 5" 5" 6.53 lbs
KAS-C601 6" 6" 10.49 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
