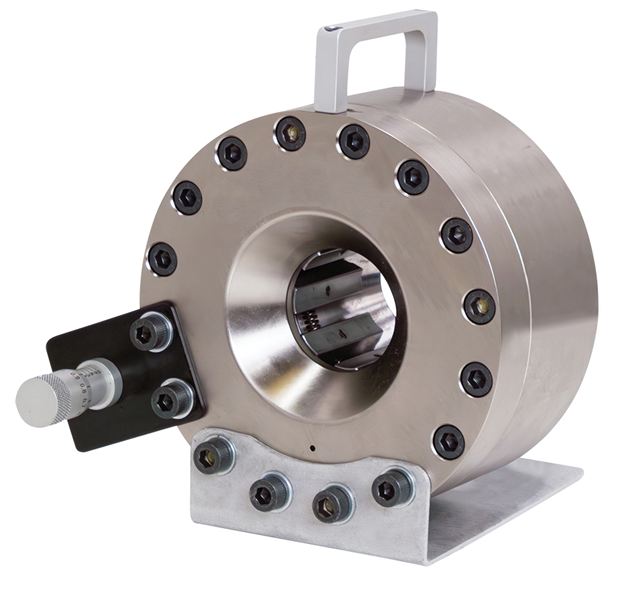

KC1-H47L KuriCrimp™ by Kuriyama | KC1-H47L Series | Service Crimper | Hand, Air or Battery Powered | 57 Ton Crimping Force | Included: Die Segment Change Tool & Carry Handle

KC1-H47L KuriCrimp™ by Kuriyama | KC1-H47L Series | Service Crimper | Hand, Air or Battery Powered | 57 Ton Crimping Force | Includes: Die Segment Change Tool & Carry Handle

Save $1,407.22 Save $1,407.22
$4,925.28
$4,925.28 - $4,925.28
$4,925.28
$3,518.06
$3,518.06 - $3,518.06
$3,518.06

Kuriyama of America Inc.
KuriCrimp™ | KC1-H47L Series | Service Crimper

With its compact design, built-in carrying handle, and weighing a mere 28 lbs., this crimper is perfect for on-site service in remote spots.

Powered by either a separate hand, pneumatic or battery powered pump (sold separately).
Specifications for Variant SKU: KC1-H47L Kuriyama
Brand: KuriCrimp
Series: KC1-H47L Series
Hose Capacity (in):
  • 1 - 2 Wire: 3/4"
  • 4 SP / 6 SP: NA
  • 90º Fittings: 3/8"
  • Industrial: NA
Crimping Force (ton):
  • 57
Opening Diameter:
  • Max. With Dies (mm / in): 49 / 1.93
  • By Die Size (mm / in): Die Size + 20 / 0.79
Crimper Size:
  • L x W x H (in): 10.0 x 10.9 x 18.9
  • Weight (lbs): 28
Control Mechanism:
  • Dial micrometer, with electric limit switch indicating when the crimp diameter is reached.
  Part Number Description
KC1-H47L Hand, Air or Battery Powered
57 Ton Crimping Force
Included: Die Segment Change Tool & Carry Handle
Included Accessories
KCDCT-H39
Die Change Tool		 Carry Handle
Dies | H39 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH39-6 6.0 - 8.0mm 6mm 55mm 4.0 lbs
KCDH39-6 8.0 - 10.0mm 8mm 55mm 4.0 lbs
KCDH39-10 10.0 - 12.0mm 10mm 55mm 4.0 lbs
KCDH39-12 12.0 - 14.0mm 12mm 55mm 4.0 lbs
KCDH39-14 14.0 - 16.0mm 14mm 55mm 4.0 lbs
KCDH39-16 16.0 - 19.0mm 16mm 55mm 4.0 lbs
KCDH39-19 19.0 - 22.0mm 19mm 55mm 4.0 lbs
KCDH39-22 22.0 - 25.0mm 22mm 55mm 4.0 lbs
KCDH39-25 25.0 - 29.0mm 25mm 65mm 4.0 lbs
KCDH39-29 29.0 - 34.0mm 29mm 65mm 4.0 lbs
Optional Accessories:
KC1-H47L-BPP
Battery Pump		 KC1-H47E-HP
Hand Pump		 KC1-H47L-PAP
Air Pump		 KC1-H47E-DIECASE
Case and Dies
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
