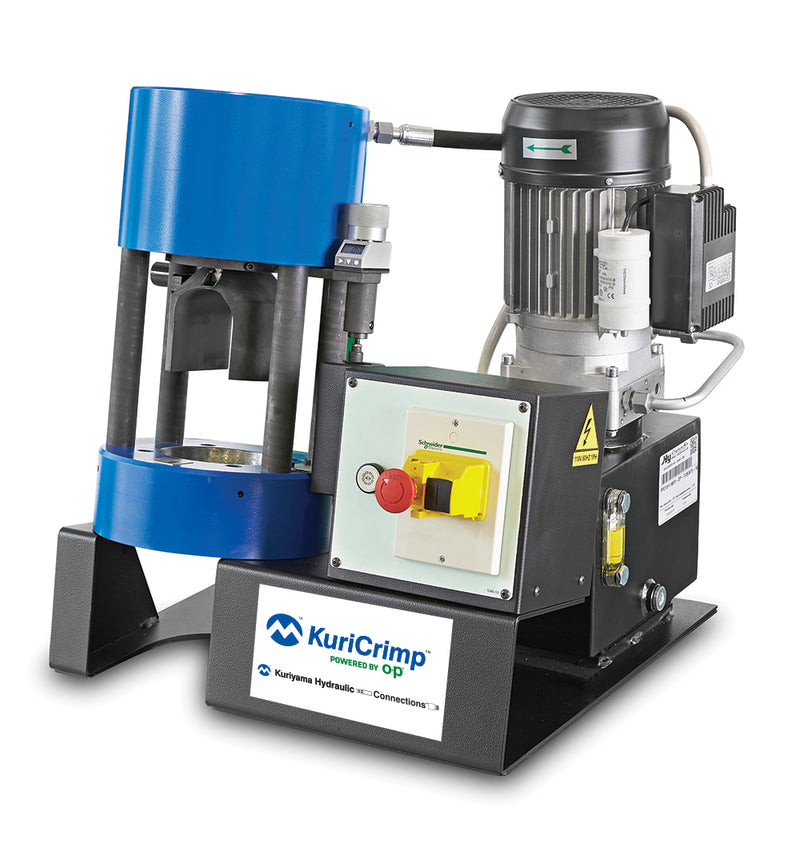

KC2-J67-110/1 KuriCrimp™ by Kuriyama | KC2-J67 Series| Service Crimper | 1.5 HP (110 V) 1 PH Motor | 190 Ton Crimping Force

KC2-J67-110/1 KuriCrimp™ by Kuriyama | KC2-J67 Series | Service Crimper | 1.5 HP (110 V) 1 PH Motor | 190 Ton Crimping Force

Save $3,105.00 Save $3,105.00
$10,867.49
$10,867.49 - $10,867.49
$10,867.49
$7,762.49
$7,762.49 - $7,762.49
$7,762.49

Kuriyama of America Inc.
KuriCrimp™ | KC2-J67 Series | Service Crimper

An extremely powerful, vertical unit, with a robust 190 tons of crimping force.

Crimps up to 1 1/2" two wire, and up to 1 1/4" 4,000 PSI and 1" 5,000 PSI, hydraulic hoses.

Uses color coded rubber cage dies for easier handling and identification.
Specifications for Variant SKU: KC2-J67-110/1 Kuriyama
Brand: KuriCrimp
Series: KC2-J67 Series
Hose Capacity (in):
  • 1 - 2 Wire: 1-1/2"
  • 4 SP / 6 SP: 1-1/4* / N/A
  • 90º Fittings: 1-1/2
  • Industrial: NA
Crimping Force (ton):
  • 190
Opening Diameter:
  • Max. With Dies (mm / in): 67 / 2.64
  • By Die Size (mm / in): N/A
Crimper Size:
  • L x W x H (in): 20.2 x 19.3 x 20.5
  • Weight (lbs): 195
Control Mechanism:
  • Dial micrometer, with electric limit switch indicating when the crimp diameter is reached.
Motor:
  • 1.5 HP (110 V) 1 PH
Hydraulic Fluid:
  • Type: ISO 32
  • Amount: 5.5L = 1.45 Gal.
  Part Number Description
KC2-J67-110/1 1.5 HP (110 V) 1 PH Motor
190 Ton Crimping Force
Dies | J67 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDJ67-8 8.0 - 10.0 8 75 14.5
KCDJ67-10 10.0 - 12.0 10 75 14.5
KCDJ67-12 12.0 - 14.0 12 75 14.5
KCDJ67-14 14.0 - 16.0 14 75 14.5
KCDJ67-16 16.0 - 19.0 16 75 14.5
KCDJ67-19 19.0 - 22.0 19 75 14.5
KCDJ67-22 22.0 - 25.0 22 75 14.5
KCDJ67-25 25.0 - 29.0 25 75 14.5
KCDJ67-29 29.0 - 34.0 29 75 14.5
KCDJ67-34 34.0 - 38.0 34 75 14.5
KCDJ67-38 38.0 - 42.0 38 75 14.5
KCDJ67-42 42.0 - 46.0 42 75 14.5
KCDJ67-46 46.0 - 50.0 46 75 14.5
KCDJ67-50 50.0 - 54.0 50 75 14.5
KCDJ67-54 54.0 - 58.0 54 75 14.5

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
