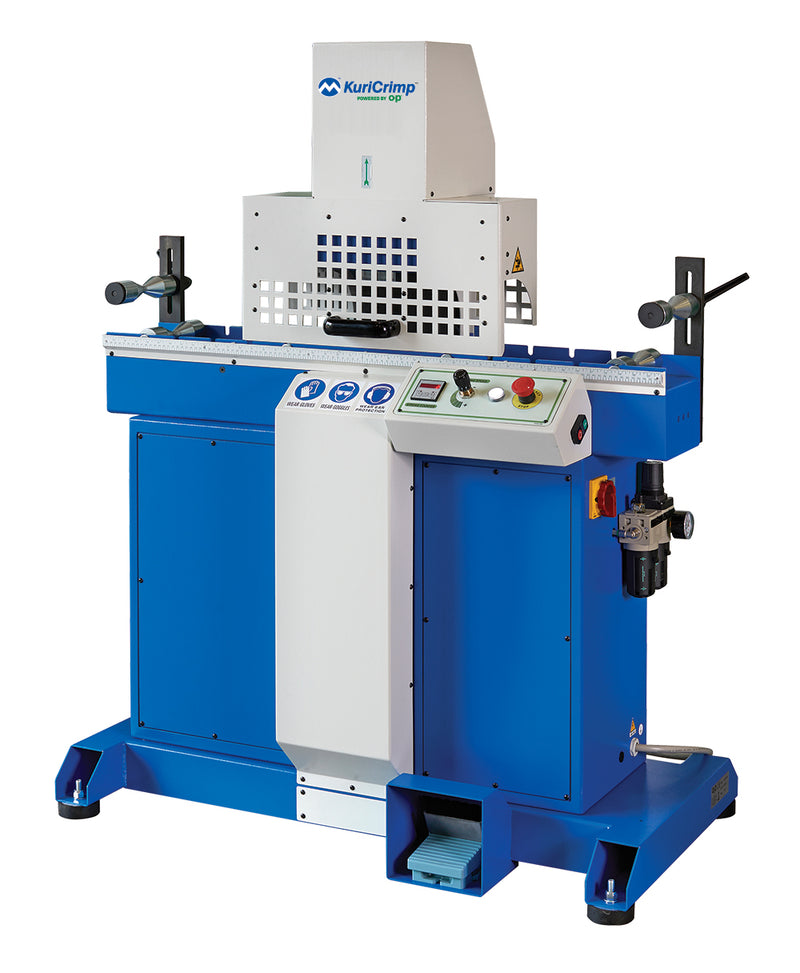

KCS-TF4-230/3 KuriCrimp™ by Kuriyama | KCS-TF4 Series | Hose Saw | 7.5 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 2" Six Spirals

KCS-TF4-230/3 KuriCrimp™ by Kuriyama | KCS-TF4 Series | Hose Saw | 7.5 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 2" Six Spirals

Save $2,512.61 Save $2,512.61
$22,613.52
$22,613.52 - $22,613.52
$22,613.52
$20,100.91
$20,100.91 - $20,100.91
$20,100.91

Kuriyama of America Inc.
KuriCrimp™ | KCS-TF4 Series | Hose Saw

Cuts up to 2" six spiral hoses. Blade chamber is completely recessed in the body of the unit allowing for more efficient ventilation.

Uses 100 PSI pneumatic input control.

Suggested for use with KC4-V150 and KC4-V159 series crimpers.
Specifications for Variant SKU: KCS-TF4-230/3 Kuriyama
Brand: KuriCrimp
Series: KCS-TF4 Series
Description:
  • Cuts up to 2" six spiral hoses. Blade chamber is completely recessed in the body of the unit allowing for more efficient ventilation. Uses 100 PSI pneumatic input.
  • Suggested for use with KC4-V150 and KC4-V159 series crimpers.
  • Low Smoke.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: 3 in
  • Hose Capacity for 4 Spiral: 2-1/2 in
  • Hose Capacity for 6 Spiral: 2 in
  • Hose Capacity for Industrial: 3 in
  • Max. Opening: 100 mm
Cutter Size:
  • Length: 44.0 in
  • Width: 23.8 in
  • Height: 57.2 in
  • Weight: 717 lb
  • Blade Diameter: 400 mm
Included Accessories:
  • Recessed Blade Chamber.
  • Ventilation Port (Separate suction device required for fume extraction).
  • Pneumatic Foot Pedal.
  • Stroke Counter.
  • Serrated Blade (The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement).
Part Number Motor Weight
KCS-TF4-230/3 7.5 HP (230 V) 3 PHSCAN 717 lb
