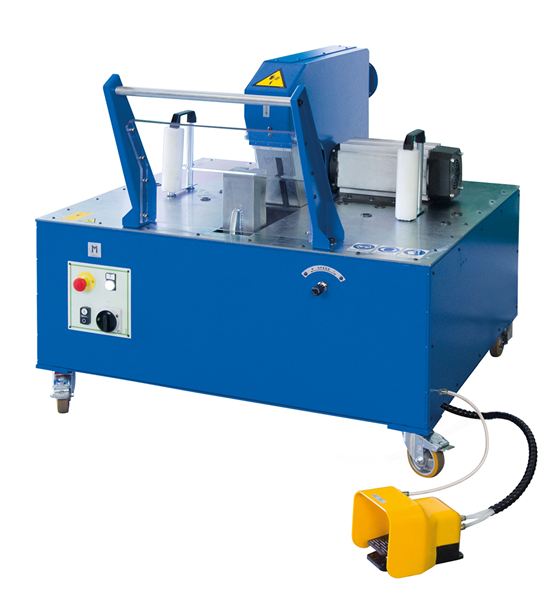

KCS-TF5DI-230/3 KuriCrimp™ by Kuriyama | KCS-TF5DI Series | Hose Saw | 10 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 3" Six Spirals & 6" Industrial Hose

Name: KCS-TF5DI-230/3 KuriCrimp™ by Kuriyama | KCS-TF5DI Series | Hose Saw | 10 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 3" Six Spirals & 6" Industrial Hose
Brand: Kuriyama
SKU: KCS-TF5DI-230/3 Kuriyama
Price: 23261.74 USD
Availability: InStock

Save $2,907.72

$26,169.46

$26,169.46 - $26,169.46

$26,169.46

$23,261.74

$23,261.74 - $23,261.74

$23,261.74

Kuriyama of America Inc.
KuriCrimp™ | KCS-TF5DI Series | Hose Saw

This stand alone unit is great for cutting a variety of either industrial or hydraulic hose.

Ideal for cutting up to 3" six spiral hydraulic hose and up to 6" industrial hose.

Suggested for use with KC4-V160 series crimpers.

Quantity

Specifications for Variant SKU: KCS-TF5DI-230/3 Kuriyama
Brand:	KuriCrimp
Series:	KCS-TF5DI Series

Description:
This stand alone unit is great for cutting a variety of either industrial or hydraulic hose. Ideal for cutting up to 3" six spiral hydraulic hose and up to 6" industrial hose. Suggested for use with KC4-V160 series crimpers. Low Smoke.
Hose Capacity:
Hose Capacity for 1 - 2 Wire: 3 in Hose Capacity for 4 Spiral: 3 in Hose Capacity for 6 Spiral: 3 in Hose Capacity for Industrial: 6 in (Dependent on hose type) Max. Opening: 195 mm
Cutter Size:
Length: 44.9 in Width: 46.1 in Height: 40.2 in Weight: 783 lb Blade Diameter: 520 mm
Included Accessories:
Recessed Blade. Ventilation Port (Separate suction device required for fume extraction). Pneumatic Foot Pedal. Diamond Blade.

Part Number	Motor	Weight
KCS-TF5DI-230/3	10 HP (230 V) 3 PH	783 lb
