KH-STOPFUSAE145 Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for 300 & 600 SAE Code 61 & 62 Flanges | Small Cutting Plate | M6 Size | 0.571" ID | 17.717" Length | Pack of 10

Save $118.97

$416.40

$416.40 - $416.40

$416.40

$297.43

$297.43 - $297.43

$297.43

Kuriyama of America Inc.

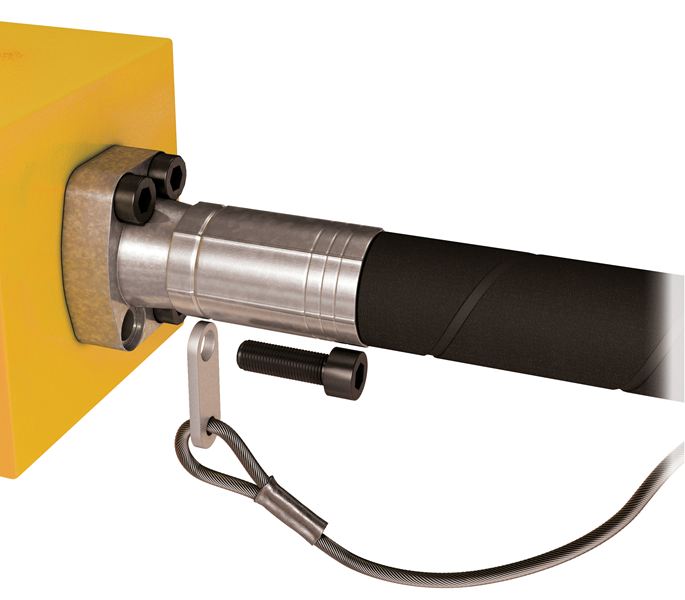

Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUSAE | For 300 & 600 SAE Code 61 & 62 Flanges

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.

Package Quantity: 10 Units

Specifications for Variant SKU: KH-STOPFUSAE145 Kuriyama
Brand:	Stopflex
Series:	KH-STOPFUSAE Series
Applicable Specs & Approvals:	ISO 4413

About:
Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI. During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury. The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
Stopflex enhances workplace safety and reduces the risk of injury or damage. Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.


Part Number	Ø M	Ø (in)	SP./TH (in)	L (in)	Maximum Operating Pressure	Cutting Plate
KH-STOPFUSAE085	M6	0.335"	0.157"	11.811"	6018 PSI	SMALL
KH-STOPFUSAE2105	M6	0.413"	0.157"	11.811"	6090 PSI	SMALL
KH-STOPFUSAE105	M8	0.492"	0.157"	17.717"	6090 PSI	LARGE
KH-STOPFUSAE125	M8	0.492"	0.157"	17.717"	6090 PSI	LARGE
KH-STOPFUSAE145	M6	0.571"	0.157"	17.717"	6090 PSI	SMALL
KH-STOPFUSAE165	M8	0.650"	0.157"	17.717"	6090 PSI	LARGE
KH-STOPFUSAE205	M8	0.807"	0.157"	17.717"	5075 PSI	LARGE
KH-STOPFUSAE25	M8	0.984"	0.315"	21.654"	5075 PSI	LARGE
KH-STOPFUSAE32	M8	1.260"	0.315"	21.654"	3045 PSI	LARGE

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
