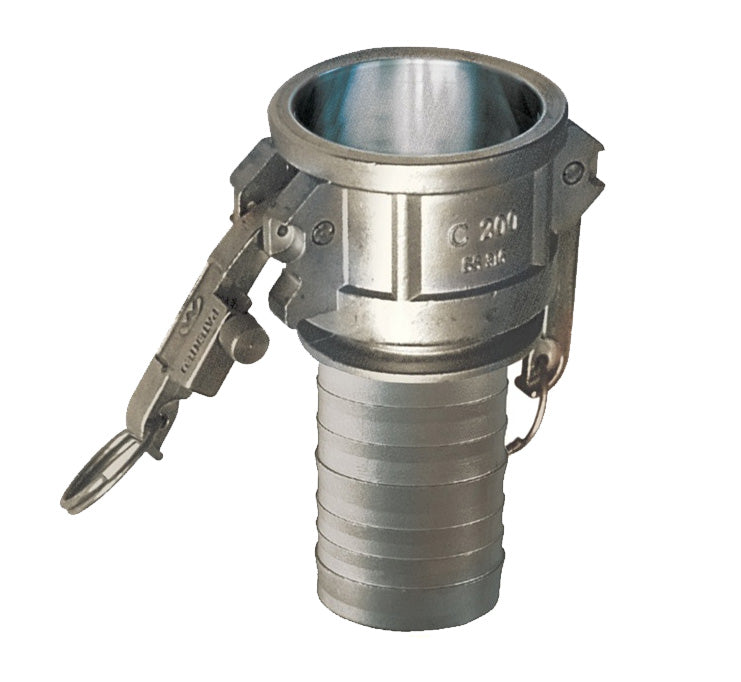

KLOC-SS-C150 by Kuriyama | KLOC-SS-C Series | Part C | K-Loc™ Auto Lock Quick Acting Cam & Groove Fitting | 1-1/2" Coupler x 1-1/2" Hose Barb | 316 Stainless Steel

KLOC-SS-C150 by Kuriyama | KLOC-SS-C Series | Part C | K-Loc™ Auto Lock Quick Acting Cam & Groove Fitting | 1-1/2" Coupler x 1-1/2" Hose Barb | 316 Stainless Steel

Save $16.14 Save $16.14
$95.60
$95.60 - $95.60
$95.60
$79.46
$79.46 - $79.46
$79.46

Kuriyama of America Inc.
K-Loc™ Auto Lock Quick Acting Cam & Groove (Camlock) Fitting | KLOC-SS-C Series | Part C | Coupler x Hose Barb | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: KLOC-SS-C150 Kuriyama
Series: KLOC-SS-C Series
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made for use in petroleum markets with bottom loading applications.
  • Stainless steel alloy is analyzed on every melt, and specifically designed for high tensile strength and rigidity.
  • Self-Locking handle provides maximum security and safety when connecting with male parts.

What are the Materials?

  • ASTM stainless steel alloy, specially designed for high tensile strength and impact resistance.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Coupler Size
(in)		 Hose Barb Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
KLOC-SS-C150 1-1/2" 1-1/2" 250 PSI A666/316 1.87 lbs
KLOC-SS-C200 2" 2" 250 PSI A666/316 2.80 lbs
KLOC-SS-C300 3" 3" 150 PSI A666/316 5.22 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
