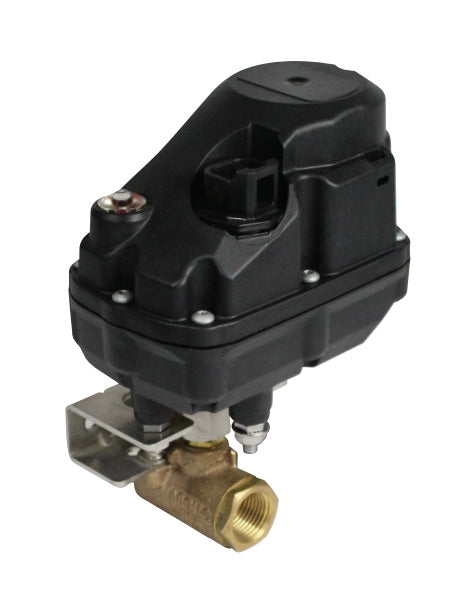

KZ-84i22-20EWS-PF1 KZ Valve by Banjo | 84 Series | Electric Bronze Ball Valve | 2" Female NPT | Control Type: PWM

KZ-84i22-20EWS-PF1 KZ Valve by Banjo | 84 Series | Electric Bronze Ball Valve | 2" Female NPT | Control Type: PWM

Save $678.29 Save $678.29
$1,695.73
$1,695.73 - $1,695.73
$1,695.73
$1,017.44
$1,017.44 - $1,017.44
$1,017.44

Banjo® Liquid Handling Products
KZ Valve | 84 Series | Electric Bronze Ball Valve
Specifications for Variant SKU: KZ-84i22-20EWS-PF1 Banjo
Brand: KZ Valve
Series: 84 Series
Ends Configuration: \2in Female NPT, 2in Female NPT, Some Ends Match\
Material(s): Bronze
Applicable Specs & Approvals: IP68, NEMA 6P, NEMA 7D
Features:
  • Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extend actuator life.
  • Actuator housing is ignition safe (Rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection.
Materials:
  • Valve body: C84400 bronze
  • Ball: 316 stainless steel
  • Stem: 316 stainless steel
  • Seat: Virgin PTFE
  • Stem packing: PTFE
  • Glass-filled nylon housing is durable, impact resistant, provides long life and lower maintenance cost.
Part Number Description Control Type Cycle Time
KZ-84B23-1CE9S-D01 EH3, 1/4" Female NPT ON/OFF 0.7 Sec
KZ-84D23-1CE9S-D01 EH3, 1/2" Female NPT ON/OFF 0.7 Sec
KZ-84i22-20EWS-PF1 EH2, 2" Female NPT PWM 3 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
