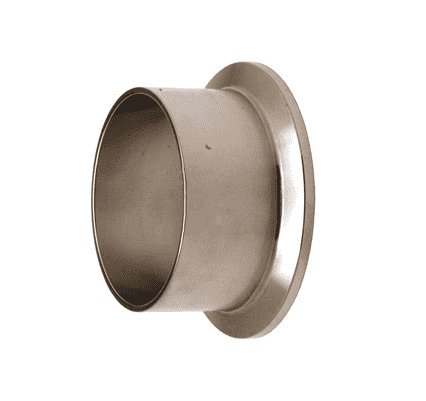

Continue ShoppingL14AM7-G250 Dixon Valve 304 Stainless Steel Sanitary Long Weld Ferrule - 2-1/2" Tube OD
- $7.49
| Part Number | Tube OD | Dimensions |
Weight (lbs.) |
||
|---|---|---|---|---|---|
| A | B | C | |||
| L14AM7-G50 | 1/2" | 1.125 | .370 | .500 | 0.0520 |
| L14AM7-G75 | 3/4" | 1.125 | .620 | .750 | 0.0565 |
| L14AM7-G100 | 1" | 1.125 | .870 | 1.000 | 0.2000 |
| L14AM7-G150 | 1-1/2" | 1.125 | 1.370 | 1.500 | 0.1500 |
| L14AM7-G200 | 2" | 1.125 | 1.870 | 2.000 | 0.2000 |
| L14AM7-G250 | 2-1/2" | 1.125 | 2.370 | 2.500 | 0.2700 |
| L14AM7-G300 | 3" | 1.125 | 2.870 | 3.000 | 0.3200 |
| L14AM7-G400 | 4" | 1.125 | 3.834 | 4.000 | 0.5500 |
| L14AM7-G500 | 5" | 1.125 | 4.782 | 5.000 | - |
| L14AM7-G600 | 6" | 1.500 | 5.782 | 6.000 | 1.2700 |
| L14AM7-G800 | 8" | 1.500 | 7.760 | 8.000 | 1.7700 |
| L14AM7-G1000 | 10" | 1.750 | 9.760 | 10.000 | 2.8600 |
| L14AM7-G1200 | 12" | 1.750 | 11.760 | 12.000 | 3.0800 |
