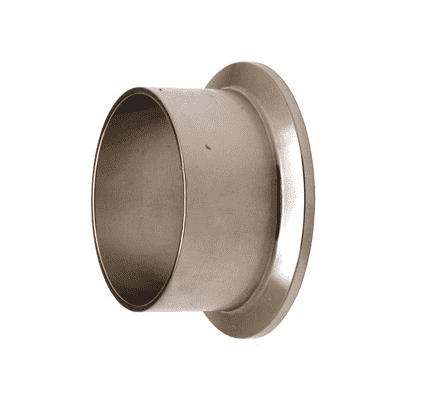

L14AM7-G600 Dixon 304 Stainless Steel Sanitary Long Weld Ferrule - 6" Tube OD

L14AM7-G600 Dixon Valve 304 Stainless Steel Sanitary Long Weld Ferrule - 6" Tube OD

Save $4.63 Save $4.63
$41.67
$41.67 - $41.67
$41.67
$37.04
$37.04 - $37.04
$37.04

Dixon Sanitary Fittings Sanitary Clamp Ferrules - Long Weld Ferrule - 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: L14AM7-G600 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Part Number Tube OD Dimensions

 Weight
(lbs.)
A B C
L14AM7-G50 1/2" 1.125 .370 .500 0.0520
L14AM7-G75 3/4" 1.125 .620 .750 0.0565
L14AM7-G100 1" 1.125 .870 1.000 0.2000
L14AM7-G150 1-1/2" 1.125 1.370 1.500 0.1500
L14AM7-G200 2" 1.125 1.870 2.000 0.2000
L14AM7-G250 2-1/2" 1.125 2.370 2.500 0.2700
L14AM7-G300 3" 1.125 2.870 3.000 0.3200
L14AM7-G400 4" 1.125 3.834 4.000 0.5500
L14AM7-G500 5" 1.125 4.782 5.000 -
L14AM7-G600 6" 1.500 5.782 6.000 1.2700
L14AM7-G800 8" 1.500 7.760 8.000 1.7700
L14AM7-G1000 10" 1.750 9.760 10.000 2.8600
L14AM7-G1200 12" 1.750 11.760 12.000 3.0800
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
