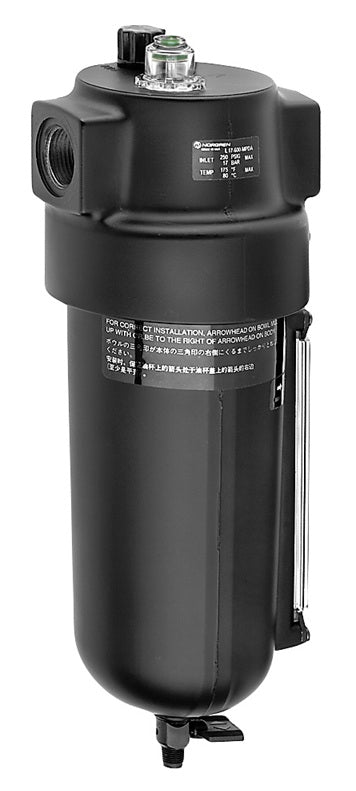

L17-B00A by Dixon Valve | L17 Series 1 | Jumbo Micro-Fog Lubricator | 1-1/2" Port Size | 275 SCFM | 1 qt Metal Bowl with Sight Glass

L17-B00A by Dixon Valve | L17 Series 1 | Jumbo Micro-Fog Lubricator | 1-1/2" Port Size | 275 SCFM | 1 qt Metal Bowl with Sight Glass

Save $217.52 Save $217.52
$543.80
$543.80 - $543.80
$543.80
$326.28
$326.28 - $326.28
$326.28

Dixon Valve
L17 Series 1 | Jumbo Micro-Fog Lubricator

Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.

- 1 qt. reservoir
- Oil level sight gauge

For air service only.
Specifications for Variant SKU: L17-B00A Dixon
Series: L17 Series 1
Application:
  • Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.
  • Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome; oil is dropped into the fog generator and atomized into a fine mist; lightweight particles are delivered downstream for lubrication; heavier particles fall back into the reservoir.
  • The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.
  • Micro-fog lubricators cannot be filled under pressure.
Features:
  • 1 qt. reservoir.
  • Oil level sight gauge.
  • One turn threaded bowl attachment permits easy maintenance.
Specifications:
  • Inlet pressure: 250 PSI
  • Maximum temperature: 175°F (79°C)
  • SCFM ratings at 90 PSIG inlet pressure.
Dimensions:
Metal Bowl with Sight Glass
Part Number		 Port Size Flow (SCFM)
L17-600A 3/4" 160 SCFM
L17-800A 1" 275 SCFM
L17-A00A 1-1/4" 275 SCFM
L17-B00A 1-1/2" 275 SCFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
