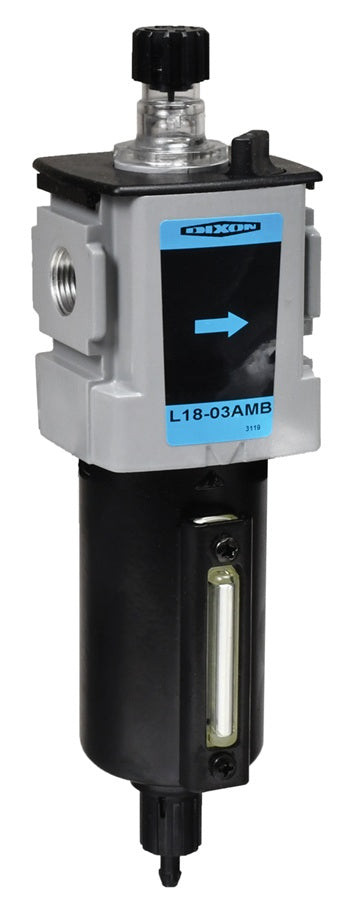

L18-03AMB Wilkerson EconOmist® by Dixon Valve | L18-Series | Compact Lubricator | 3/8" Size | 90 SCFM | 4 oz. Metal Bowl

L18-03AMB Wilkerson EconOmist® by Dixon Valve | L18-Series | Compact Lubricator | 3/8" Size | 90 SCFM | 4 oz. Metal Bowl

Save $8.91 Save $8.91
$105.47
$105.47 - $105.47
$105.47
$96.56
$96.56 - $96.56
$96.56

Dixon Valve
Wilkerson | L18-Series | EconOmist® Compact Lubricator

- 4 oz. bowl
- High flow capacity
Specifications for Variant SKU: L18-03AMB Dixon
Brand: Wilkerson
Series: EconOmist, L18-Series
Flow Guide®:
  • The elastomer disc-shaped device is located in the throat of all Wilkerson lubricators and automatically maintains a constant ratio of oil flow to airflow regardless of changing rates of airflow. This allows one lubricator to serve several pneumatic components operating together or intermittently.
Type of Oil to Use:
  • For all Wilkerson lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil. Do not use synthetic oil or any oils containing additives or solvents.
Features:
  • 4 oz. bowl.
  • Manual drain.
  • High flow capacity.
  • Can be filled under pressure.
  • To adjust and set oil delivery rate the unit must be pressurized and air must be flowing through the unit. Turn the sight dome, located on the top of the unit, counter clockwise to initiate oil delivery. The rate of oil delivery depends on air flow rate. If flow increases or decreases, the oil delivery rate will increase or decrease proportionally. Turning the sight dome clockwise will stop all oil delivery.
Specifications:
  • Maximum operating conditions:
    • Transparent Bowl: 150 PSIG (10.3 bar) and 14°F to 125°F (-10°C to 52°C)
    • Metal Bowl: 250 PSIG (17.2 bar) and 14°F to 150°F (-10°C to 65.5°C)
  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings at 150 PSIG inlet pressure
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl
Part Number		 Size Flow (SCFM)
L18-02A L18-02AMB 1/4" 88 SCFM
L18-03A L18-03AMB 3/8" 90 SCFM
L18-04A L18-04AMB 1/2" 96 SCFM
