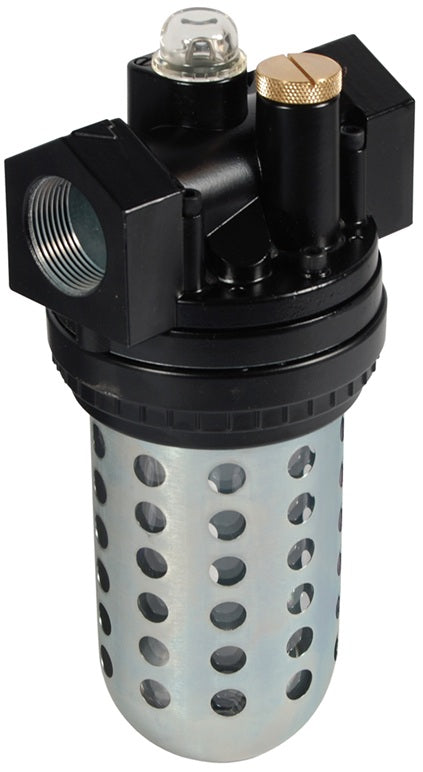

L40-0BA Wilkerson EconOmist® by Dixon Valve | L40-Series | Standard Lubricator | 1-1/2" Size | 927 SCFM | 26 oz. Transparent Bowl

L40-0BA Wilkerson EconOmist® by Dixon Valve | L40-Series | Standard Lubricator | 1-1/2" Size | 927 SCFM | 26 oz. Transparent Bowl

Save $399.81 Save $399.81
$999.53
$999.53 - $999.53
$999.53
$599.72
$599.72 - $599.72
$599.72

Dixon Valve
Wilkerson | L40-Series | EconOmist® Standard Lubricator

- 26 oz. bowl
- Can be filled under pressure
- Adjustable oil feed
Specifications for Variant SKU: L40-0BA Dixon
Brand: Wilkerson
Series: EconOmist, L40-Series
Flow Guide®:
  • The elastomer disc-shaped device is located in the throat of all Wilkerson lubricators and automatically maintains a constant ratio of oil flow to airflow regardless of changing rates of airflow. This allows one lubricator to serve several pneumatic components operating together or intermittently.
Type of Oil to Use:
  • For all Wilkerson lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil. Do not use synthetic oil or any oils containing additives or solvents.
Features:
  • 26 oz. bowl.
  • Transparent bowl: solid bottom.
  • metal bowl: manual drain with sight glass.
  • Full view sight dome.
  • Adjustable oil feed.
  • Can be filled under pressure.
  • Quick-disconnect clamp ring for easy bowl removal.
  • The rate of oil delivery may be controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery. The oil delivery rate will change automatically to deliver more oil during higher air flows and less oil for air flows lower than the one at which the setting was made.
Specifications:
  • Maximum operating conditions:
    • Transparent Bowl: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C)
    • Metal Bowl: 200 PSIG (13.8 bar) and 32°F to 150°F (0°C to 66°C)
  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings at 120 PSIG inlet pressure.
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl with Sight Glass
Part Number		 Size Flow (SCFM)
L40-0BA L40-0BAMB 1-1/2" 927 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
