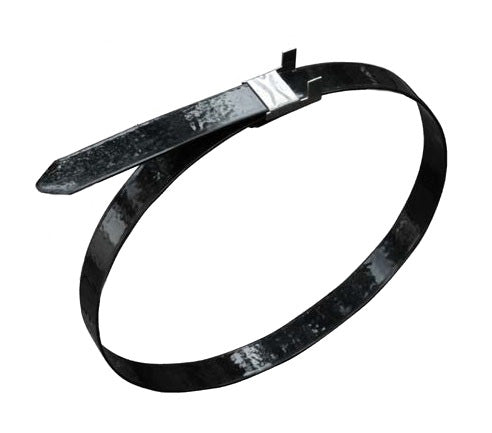

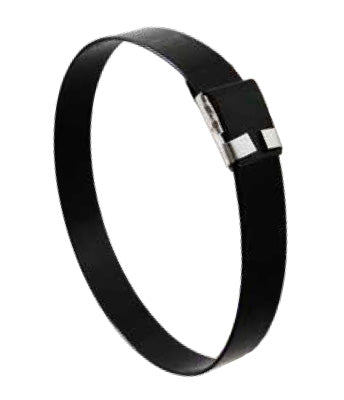

LFAC-F1015M040-A900 by Band-It | BAND-FAST® Cable Cleat Alternative Band | Single Wrap | 5/8" Width | 15.75" Length | PPA Coated | 316 Stainless Steel | 100/Bag

Minimum Order Quantity: 4 Units

Save $45.84

$412.59

$412.59 - $412.59

$412.59

$366.75

$366.75 - $366.75

$366.75

Band-It
BAND-FAST® - Cable Cleat Alternative

BAND-IT's BAND-FAST® cable restraint solutions are the perfect alternative to cable cleats for cable management applications that require short circuit protection to IEC61914:2015 Standards.

Costs significantly less than traditional cable cleats! When you need to increase productivity and reduce the risk of injury, start using BAND-FAST® and create a safe and efficient work environment!

Package Quantity: 100 EA

Quantity

Specifications for Variant SKU: LFAC-F1015M040-A900 Band-It
Brand:	BAND-FAST
Series:	BAND-FAST Cable Cleat Alternative Band
Material(s):	316 Stainless Steel
Special Properties:	Coated
Clamp Width:	0.625
Tie Length:	15.75

Features:
PPA Coated BAND-FAST™ Clamps with clips have 0.38mm 316SS band thickness (1.2mm thick with coating) Increased profitability Space saving with lower profile finish Logistical and handling benefits (easier to move around site in bulk) 316 grade stainless steel High Performance PPA 571 coating eliminates the need for protective channel/lining Zero Halogen, low smoke & fume Materials covered by multiple type approvals Large diameter adjustment - fewer part numbers to order Tested by independent third party facility to the latest Cable Cleat Standard IEC61914:2015 for resistance to electromechanical force.
Application Tools:
C07569 Bantam Tool.

Part Number	Band Ref.	Buckle/Clip Ref.	Width	Length	Single/Double Wrap	*Max Cable OD (Single Cable Config.)	*Max Cable OD (Trefoil Cable Config.)	*Max Cable OD (Quadrafoil Cable Config.)	Package Quantity	Passed IEC61914: 2015 Short Circuit Test in Trefoil up to (kA peak)
LFAC-F1015M040-A900	AE435	AE455	5/8"	15.75"	Single	2.95"	1.10"	0.98"	100/Bag	50.8kA
LFAC-F1015M050-A900	AE435	AE455	5/8"	19.68"	Single	3.93"	1.69"	1.45"	100/Bag	50.8kA
LFAC-F1015M060-A900	AE435	AE455	5/8"	23.62"	Single	5.11"	2.24"	1.96"	100/Bag	50.8kA
LFAC-F1015M070-A900	AE435	AE455	5/8"	27.56"	Single	6.29"	2.75"	2.36"	100/Bag	50.8kA
LFFC-F1015M050-A900	AE435	LE155	5/8"	19.68"	Double	2.16"	0.82"	0.70"	100/Bag	76.3kA

* Note: Maximum cable OD are for a guide only.

Band-It

Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries.
