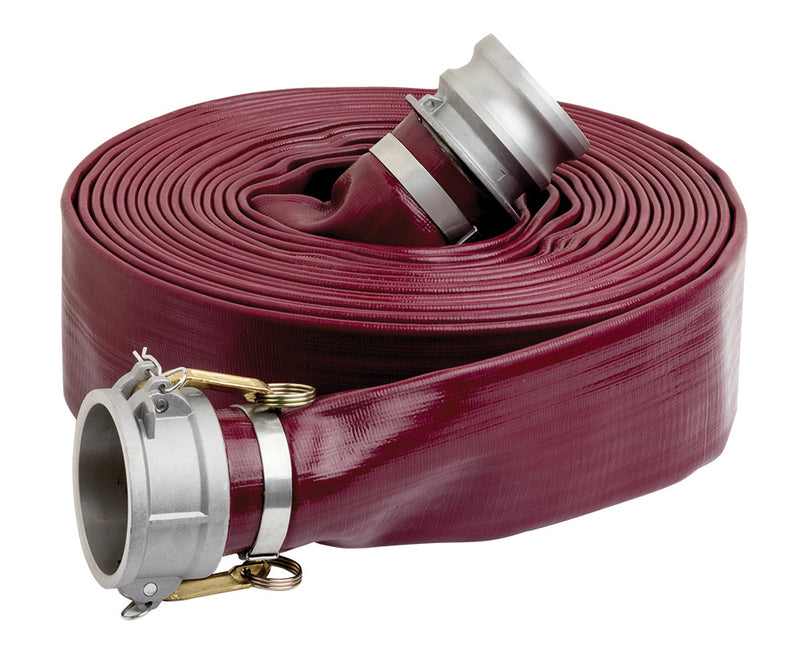

LFR200ACEX50 by Kuriyama | LFR-ACE Series | Layflat Hose Assembly | PVC | 2" Size | Red | Male x Female Camlock Couplings | Aluminum | 50ft Length

Save $86.68

$185.13

$185.13 - $185.13

$185.13

$98.45

$98.45 - $98.45

$98.45

Kuriyama
LFR-ACE Series | Layflat Hose Assembly | Male x Female Camlock Couplings

Designed for agriculture, construction, contractor, industrial, and rental applications.

Specifications for Variant SKU: LFR200ACEX50 Kuriyama
Series:	LFR-ACE Series
Hose Color(s):	Red
Tubing Construction:	PVC
Cover Construction:	PVC
Material(s):	Aluminum

Other Features:
Applications:	Agriculture Construction Contractor Industrial Rental
Construction:	Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation.
Service Temperature Range:	-10°F (-12°C) to +140°F (+60°C)
Smooth Tube - Provides low friction loss. Storage - Hose coils flat for easy storage.

Part Number Male x Female Pin Lug Couplings 50ft	Part Number Male x Female Camlock Couplings 50ft	Size		Wall Thickness	Working Pressure (PSI)
Part Number Male x Female Pin Lug Couplings 50ft	Part Number Male x Female Camlock Couplings 50ft	(in)	(mm)	(in)	at 68°F
LFR150APLX50	LFR150ACEX50	1-1/2"	38.1mm	0.079"	140
LFR200APLX50	LFR200ACEX50	2"	50.8mm	0.079"	128
LFR300APLX50	LFR300ACEX50	3"	76.2mm	0.098"	125
LFR400APLX50	LFR400ACEX50	4"	101.6mm	0.110"	125
