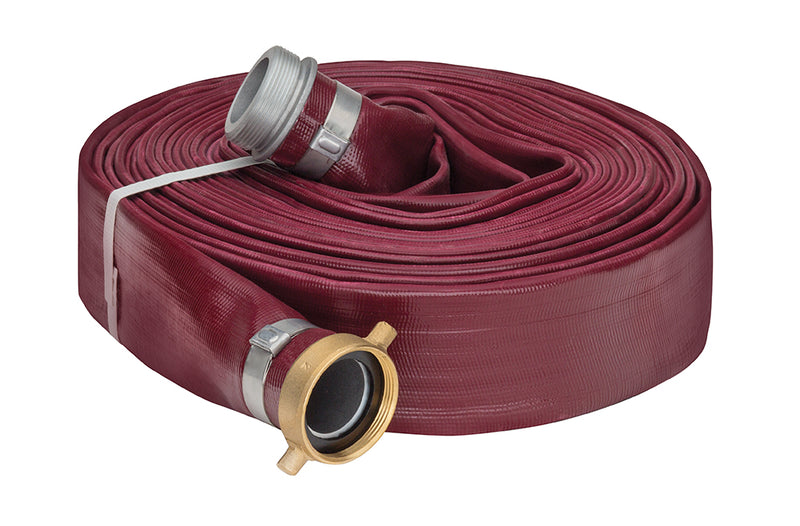

LFR300APLX50 by Kuriyama | LFR-APL Series | Layflat Hose Assembly | PVC | 3" Size | Red | Male x Female Pin Lug Couplings | Aluminum | 50ft Length

LFR300APLX50 by Kuriyama | LFR-APL Series | Layflat Hose Assembly | PVC | 3" Size | Red | Male x Female Pin Lug Couplings | Aluminum | 50ft Length

Save $93.27 Save $93.27
$248.16
$248.16 - $248.16
$248.16
$154.89
$154.89 - $154.89
$154.89

Kuriyama
LFR-APL Series | Layflat Hose Assembly | Male x Female Pin Lug Couplings

Designed for agriculture, construction, contractor, industrial, and rental applications.
Specifications for Variant SKU: LFR300APLX50 Kuriyama
Series: LFR-APL Series
Hose Color(s): Red
Tubing Construction: PVC
Cover Construction: PVC
Material(s): Aluminum

SPECIFICATIONS

Applications: Agriculture
Construction
Contractor
Industrial
Rental
Construction: Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation.
Service Temperature Range: -10°F (-12°C) to +140°F (+60°C)
Other Features:
  • Smooth Tube - Provides low friction loss.
  • Storage - Hose coils flat for easy storage.
Part Number
Male x Female
Pin Lug Couplings
50ft		 Part Number
Male x Female
Camlock Couplings
50ft		 Size Wall
Thickness		 Working
Pressure
(PSI)
(in) (mm) (in) at 68°F
LFR150APLX50 LFR150ACEX50 1-1/2" 38.1mm 0.079" 140
LFR200APLX50 LFR200ACEX50 2" 50.8mm 0.079" 128
LFR300APLX50 LFR300ACEX50 3" 76.2mm 0.098" 125
LFR400APLX50 LFR400ACEX50 4" 101.6mm 0.110" 125

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
