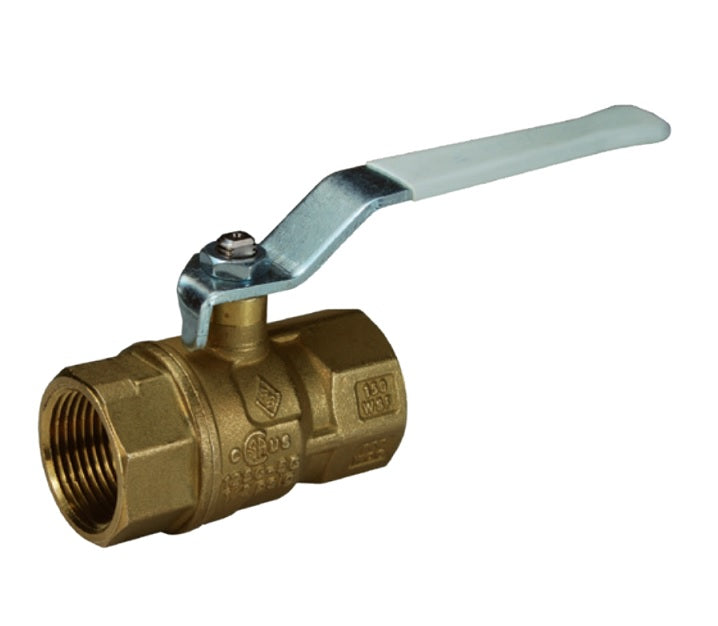

LFV100 by Dixon | Lead Free Brass Ball Valve | Full Port | 1" Female NPT x 1" Female NPT

LFV100 by Dixon | Lead Free Brass Ball Valve | Full Port | 1" Female NPT x 1" Female NPT

Save $29.94 Save $29.94
$74.85
$74.85 - $74.85
$74.85
$44.91
$44.91 - $44.91
$44.91

Dixon Valve & Coupling
Lead Free Brass Ball Valve | Full Port | Female NPT x Female NPT
Specifications for Variant SKU: LFV100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT
Material(s): Lead Free Brass
Special Properties: Lead Free
Features:
  • PTFE seat and double O-ring stem packing.
Specifications:
  • Pressure rating: 600 WOG - 150 WSP
  • Maximum temperature: 366°F (186°C)
Approvals:
  • Lead-free refers to the wetted surface of pipes, fittings, and fixtures in potable water systems that have a weighted average lead content = 0.25% Source: California Health & Safety Code (116875). Vermont Act 193*171NLF
Part Number End Size
LFV50 1/2" Female NPT x 1/2" Female NPT
LFV75 3/4" Female NPT x 3/4" Female NPT
LFV100 1" Female NPT x 1" Female NPT
LFV125 1-1/4" Female NPT x 1-1/4" Female NPT
LFV150 1-1/2" Female NPT x 1-1/2" Female NPT
LFV200 2" Female NPT x 2" Female NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
