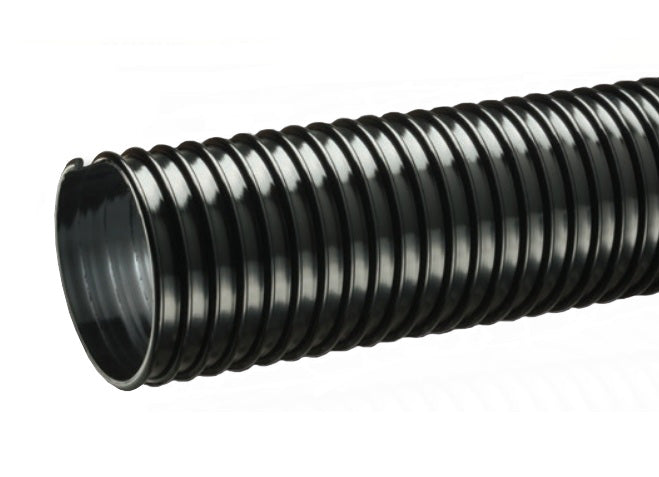

LK400X100 Tigerflex™ by Kuriyama | Lawn King™ | LK™ Series | PVC Ducting / Material Handling Hose | 4" ID | 4.57" OD | Black | 100ft Length

Save $524.43

$1,241.43

$1,241.43 - $1,241.43

$1,241.43

$717.00

$717.00 - $717.00

$717.00

Tigerflex™ by Kuriyama
Lawn King™ | LK™ / LKC™ Series | PVC Ducting/Material Handling Hose

Designed for general applications such as dust collection, lawn and leaf collection, and light-duty material handling.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: LK400X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	Lawn King, LK Series
Hose Color(s):	Black
Internal Diameter:	4in
Outer Diameter:	4.57in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant

General Applications:
Dust collection Lawn and leaf collection Material handling - light duty
Construction:
PVC tube with rigid PVC helix.
Specifications:
Phthalate Free RoHS
Service Temperature Range:
-20°F (-29°C) to +150°F (+65°C)* *Actual service temperature range is application dependent
Features and Advantages:
"Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Transparent Construction (LKC series only) - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Phthalate Free.
Notes:
Service life may vary depending on operating conditions and type of material being conveyed.

LK™ Series \| Black
Part Number 50ft Length	Part Number 100ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius at 68°F	Weight
Part Number 50ft Length	Part Number 100ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	in	(lbs/ft)
LK400X50	LK400X100	4"	101.6mm	4.57"	114.8mm	8 PSI	4 PSI	13 in Hg	7 in Hg	3"	0.85 lbs/ft
LK600X50	-	6"	152.4mm	6.63"	168.3mm	6 PSI	3 PSI	7 in Hg	5 in Hg	6"	1.34 lbs/ft
LK800X50	-	8"	203.2mm	8.63"	219.3mm	4 PSI	2 PSI	5 in Hg	3 in Hg	8"	2.00 lbs/ft

LKC™ Series \| Transparent
Part Number 50ft Length	Part Number 100ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius at 68°F	Weight
Part Number 50ft Length	Part Number 100ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	in	(lbs/ft)
LKC400X50	LKC400X100	4"	101.6mm	4.57"	114.8mm	8 PSI	4 PSI	13 in Hg	7 in Hg	3"	0.85 lbs/ft
-	LKC500X100	5"	128.0mm	5.55"	141.0mm	7 PSI	3 PSI	10 in Hg	6 in Hg	5"	0.93 lbs/ft
LKC600X50	LKC600X100	6"	152.4mm	6.63"	168.3mm	6 PSI	3 PSI	7 in Hg	5 in Hg	6"	1.34 lbs/ft
LKC700X50	-	7"	177.8mm	7.56"	192.0mm	4 PSI	2 PSI	6 in Hg	4 in Hg	7"	1.53 lbs/ft
LKC800X50	-	8"	203.2mm	8.63"	219.3mm	4 PSI	2 PSI	5 in Hg	3 in Hg	8"	2.00 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
