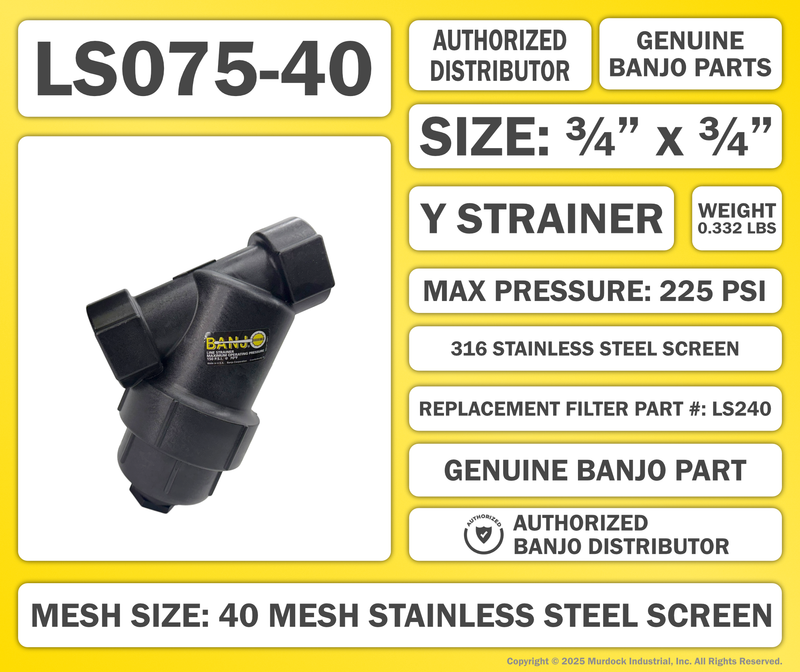

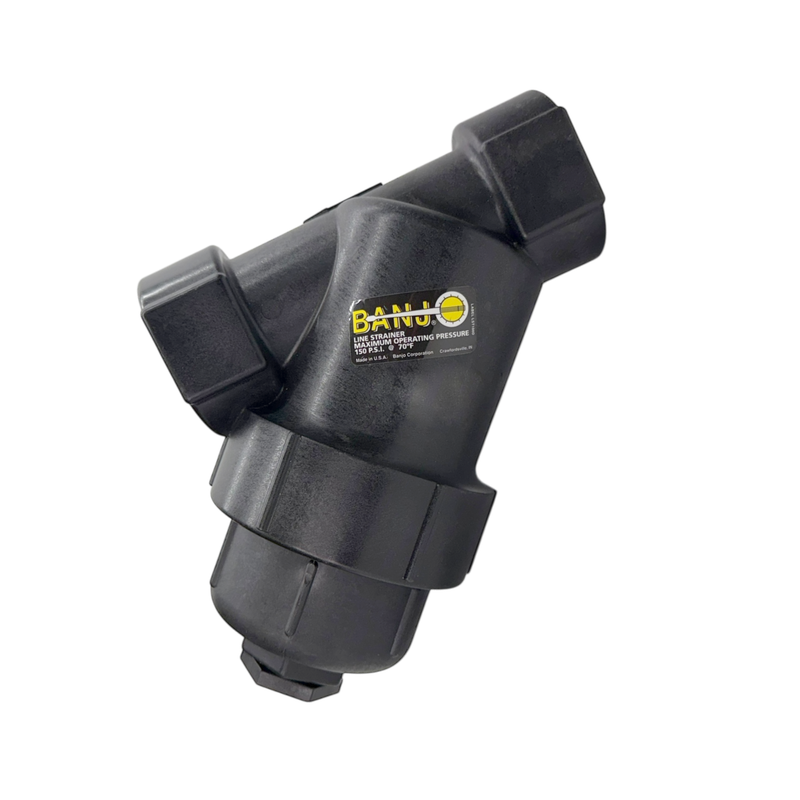

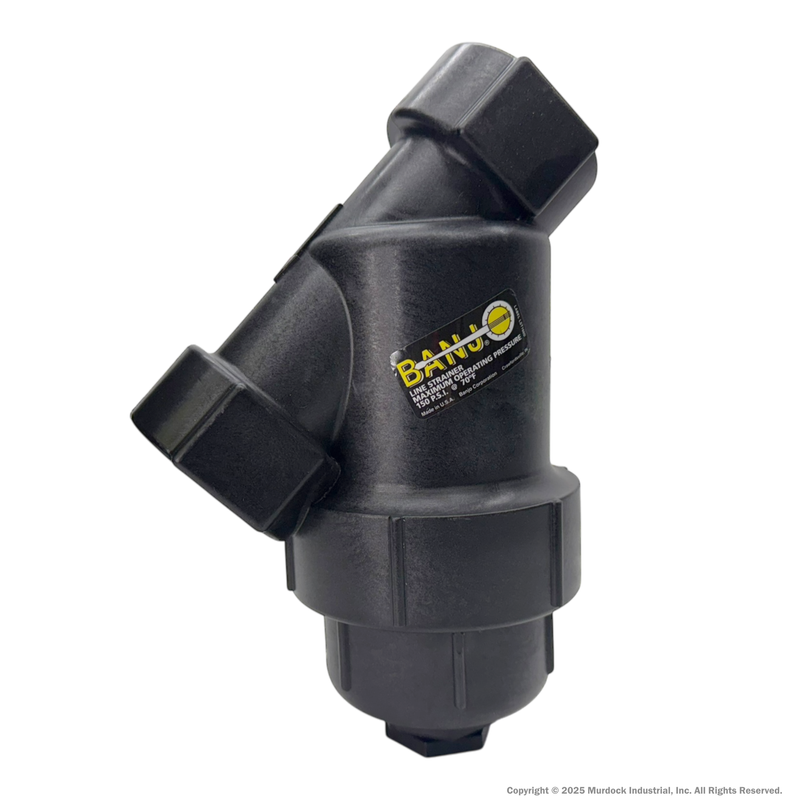

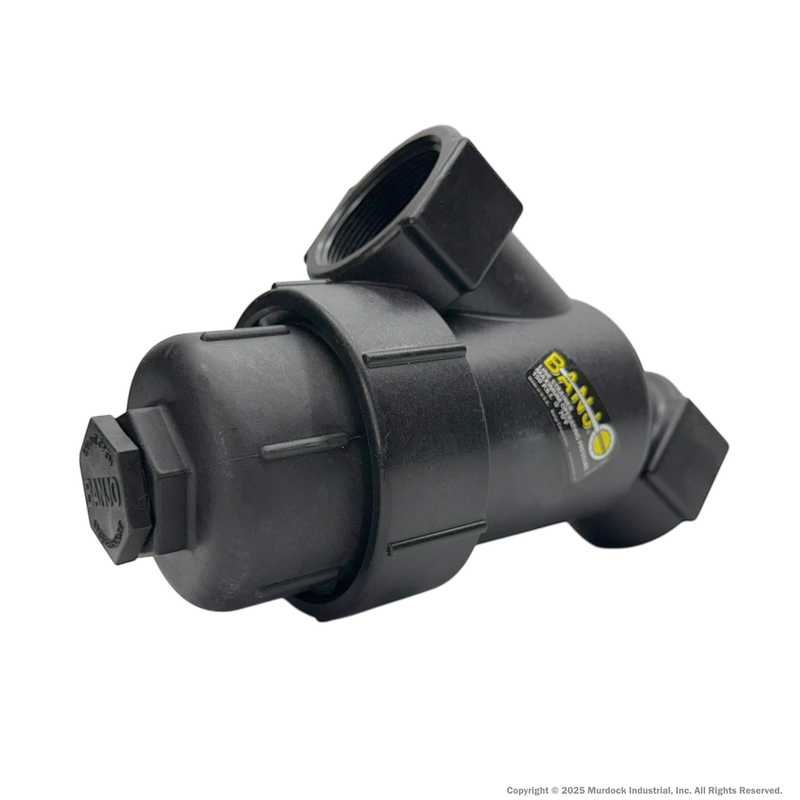

LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene
LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene

LS075-40 by Banjo | Line Y Strainer | 3/4" x 3/4" Female NPT with 40 Mesh Stainless Steel Screen | 225 PSI | Polypropylene

Save $10.63 Save $10.63
$36.51
$36.51 - $36.51
$36.51
$25.88
$25.88 - $25.88
$25.88



Banjo Line Strainers - Y Line Strainers - 3/4" Female NPT - Polypropylene
Specifications for Variant SKU: LS075-40 Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial

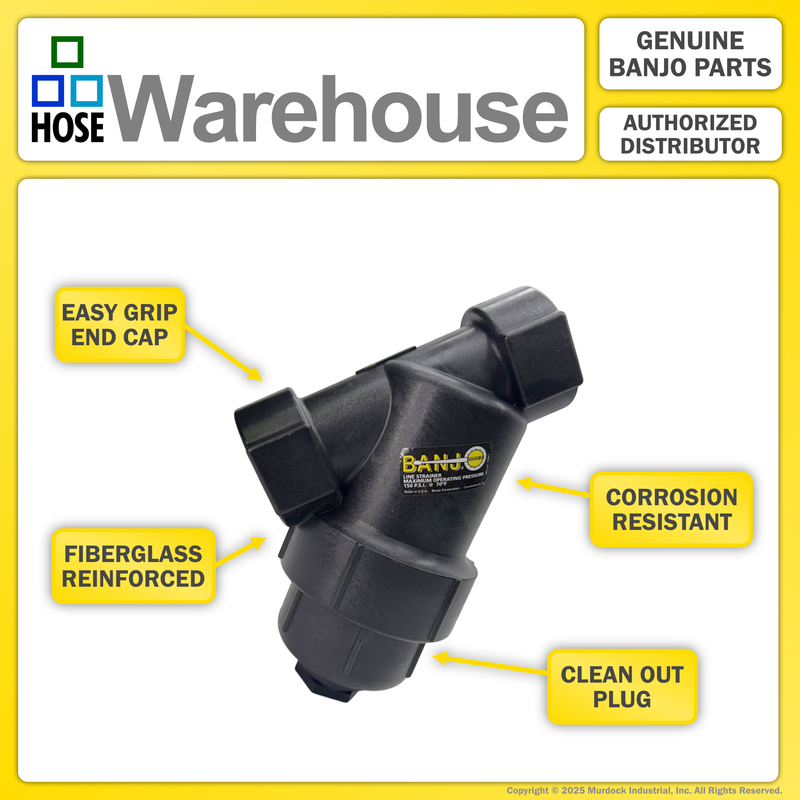

Features:
  • Precision molded construction
  • Corrosion resistant
  • Lightweight
  • Fiberglass reinforced
  • Easy grip end cap
  • Poly ribbed 304 stainless steel screen
  • EPDM gaskets FKM (viton type) available
  • Heavy duty end cap threads
  • Clean-out plug
  • Female NPT x Female NPT
  • 150 PSI maximum
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Components:
Other Data:

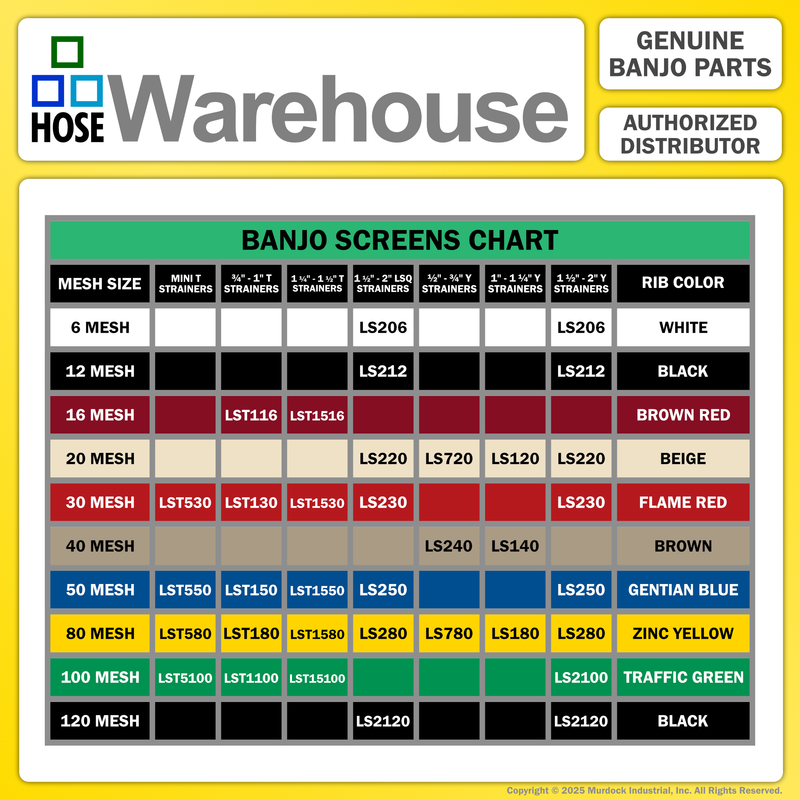

Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
20 Mesh Beige 841 .016 .034 46.2
40 Mesh Brown 400 .010 .015 36.0
60 Mesh Gentian Blue 250 .0075 .009 30.5
80 Mesh Zinc Yellow 177 .0055 .007 31.4

    Part Number Description Max PSI
    LS075-20 3/4" x 3/4" Female NPT with 20 Mesh Screen 225 PSI
    LS075-40 3/4" x 3/4" Female NPT with 40 Mesh Screen 225 PSI
    LS075-80 3/4" x 3/4" Female NPT with 80 Mesh Screen 225 PSI

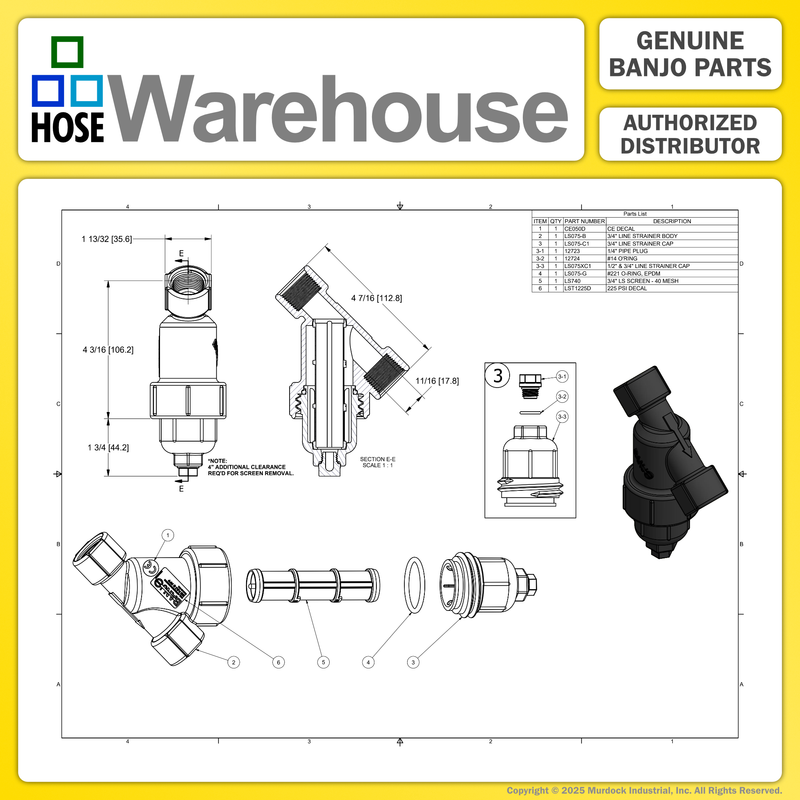

    Replacement Parts for 1/2" - 3/4" Y Strainers
    Item Part Number Description Quantity Required
    2 LS075-G 1/2" - 3/4" O-Ring 1
    2 LS075-GV 1/2" - 3/4" FKM (viton type) Gasket 1
    3 12723 1/2" Drain Plug (Fits 1/2" - 3/4") 1
    4 12724 1/2" - 3/4" EPDM O-Ring for Drain Plug 1
    5 LS720 1/2" - 3/4" 20 Mesh Screen 1
    5 LS740 1/2" - 3/4" 40 Mesh Screen 1
    5 LS780 1/2" - 3/4" 80 Mesh Screen 1
    6 LS050-B 1/2" Y Body 1
    6 LS075-B 3/4" Y Body 1
    Not Shown LS075B/C1 3/4" Y Body, Cap & Gasket 1

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
