LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene
LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene

LS200-120 by Banjo | Line Y Strainer | 2" x 2" Female NPT with 120 Mesh Stainless Steel Screen | 150 PSI | Polypropylene

Save $14.74 Save $14.74
$80.69
$80.69 - $80.69
$80.69
$65.95
$65.95 - $65.95
$65.95



Banjo Line Strainers - Y Line Strainers - 2" Female NPT - with Stainless Steel Screens - Polypropylene
Specifications for Variant SKU: LS200-120 Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • Precision molded construction
  • Corrosion resistant
  • Lightweight
  • Fiberglass reinforced
  • Easy grip end cap
  • Poly ribbed 316 stainless steel screen.
  • EPDM gaskets FKM (viton type) available
  • Heavy duty end cap threads
  • Clean-out plug
  • Female NPT x Female NPT
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Components:
Other Data:

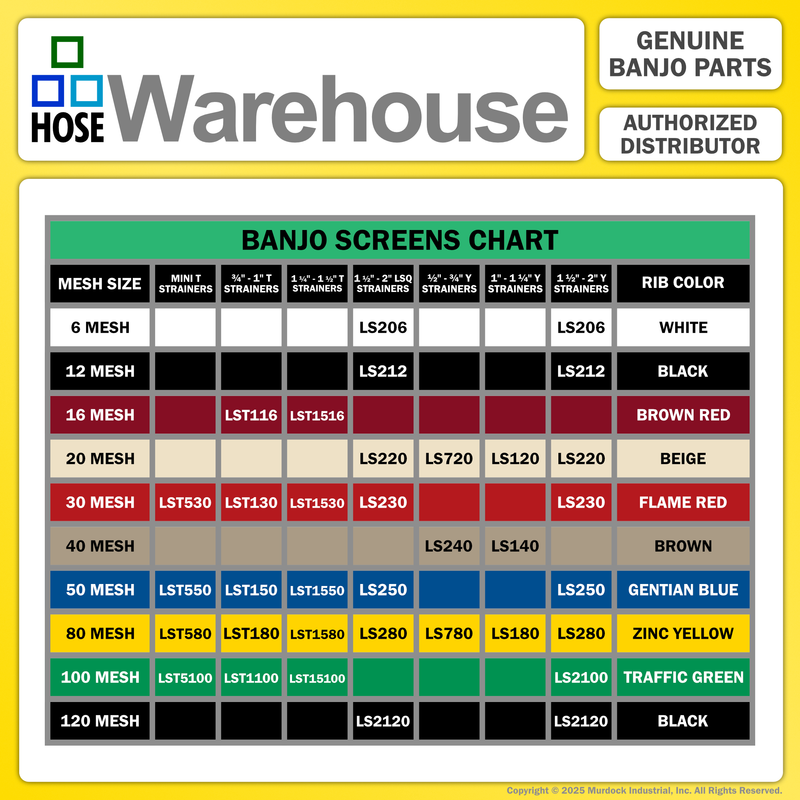

Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
6 Mesh White 3360 .035 .132 62.7
12 Mesh Black 1680 .023 .060 51.8
20 Mesh Beige 841 .016 .034 46.2
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
100 Mesh Traffic Green 149 .0045 .005 30.3
120 Mesh Black 116 .0037 .0046 30.5

    Part Number Description Max PSI
    LS200-06 2" x 2" Female NPT with 6 Mesh Screen
    LS200-12 2" x 2" Female NPT with 12 Mesh Screen
    LS200-20 2" x 2" Female NPT with 20 Mesh Screen
    LS200-30 2" x 2" Female NPT with 30 Mesh Screen
    LS200-50 2" x 2" Female NPT with 50 Mesh Screen
    LS200-80 2" x 2" Female NPT with 80 Mesh Screen
    LS200-100 2" x 2" Female NPT with 100 Mesh Screen
    LS200-120 2" x 2" Female NPT with 120 Mesh Screen

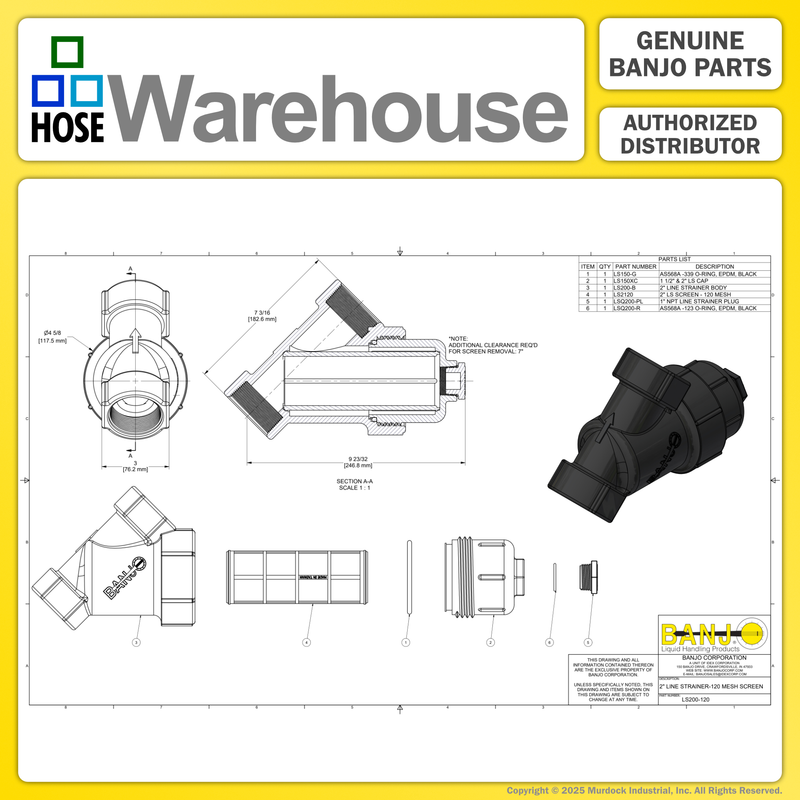

    Replacement Parts for 1-1/2" - 2" Y Strainers
    Item Part Number Description Quantity Required
    1 LS150-C* 1-1/2" - 2" End Cap 1
    2 LS150-G 1-1/2" - 2" O-Ring 1
    2 LS150-GV 1-1/2" - 2" FKM (viton type) Gasket 1
    3 LSQ200-PL 1" Drain Plug (Fits 1-1/2" - 2") 1
    4 LSQ200-R 1-1/2" - 2" EPDM O-Ring for Drain Plug 1
    4 LSQ200-RV 1-1/2"-2" FKM (viton type) O-Ring for Drain Plug 1
    5 LS206 1-1/2" - 2" 6 Mesh Screen 1
    5 LS212 1-1/2" - 2" 12 Mesh Screen 1
    5 LS220 1-1/2" - 2" 20 Mesh Screen 1
    5 LS230 1-1/2" - 2" 30 Mesh Screen 1
    5 LS250 1-1/2" - 2" 50 Mesh Screen 1
    5 LS280 1-1/2" - 2" 80 Mesh Screen 1
    5 LS2100 1-1/2" - 2" 100 Mesh Screen 1
    5 LS2120 1-1/2" - 2" 120 Mesh Screen 1
    5 LS2150 1-1/2" - 2" 150 Mesh Screen 1
    5 LS220P 1-1/2" - 2" 20 Mesh All Poly Screen 1
    7 LS141G 1-1/2" - 2" EPDM O-Ring 1
    Not Shown LS150B/C 1-1/2" Y Body, Cap & Gasket 1
    Not Shown LS200B/C 2" Y Body, Cap & Gasket 1

    NOTE: Items marked with asterisk* include parts 1, 3, and 4.

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
