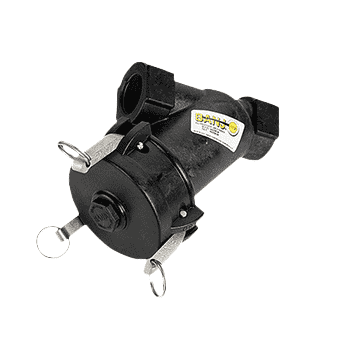

LSQ200-30 Banjo Polypropylene LSQ Line Strainer - 2" x 2" Female NPT with 30 Mesh Screen - 75 PSI

LSQ200-30 by Banjo | LSQ Line Strainer | 2" x 2" Female NPT with 30 Mesh Screen | EPDM lathe cut gasket | 100 PSI | Polypropylene | Pack of 6

Save $68.31

$614.79

$614.79 - $614.79

$614.79

$546.48

$546.48 - $546.48

$546.48

Banjo Line Strainers - LSQ Line Strainers - 2" Female NPT - Polypropylene

Package Quantity: 6 EA

Quantity

Specifications for Variant SKU: LSQ200-30 Banjo \| 6 \|

Applications:

Fluids
Agriculture
Industrial

Features:

Precision molded in glass reinforced polypropylene
Cam lever configuration for easy access for cleaning and servicing
3/4" plug in cam lever cap for attaching ball valve for draining or back flushing
Poly ribbed 316 stainless steel screen
EPDM lathe cut gasket
FKM (viton type) gaskets available
Convenient color coded screens for easy mesh size identification. (Refer to chart below)

Other Data:

Screens		Standard Meshes & Data (For General Use Only)
Mesh Size	Rib Color	Microns	Wire Diameter	Opening	% Open Area
6 Mesh	White	3360	.035	.132	62.7
12 Mesh	Black	1680	.023	.060	51.8
20 Mesh	Beige	841	.016	.034	46.2
30 Mesh	Flame Red	595	.012	.021	40.8
50 Mesh	Gentian Blue	297	.009	.011	30.3
80 Mesh	Zinc Yellow	177	.0055	.007	31.4
120 Mesh	Black	116	.0037	.0046	30.5

Part Number	Description	Max PSI	Gasket
LSQ200-06	2" x 2" Female NPT with 6 Mesh Screen	100 PSI	EPDM FKM Gaskets Available
LSQ200-20	2" x 2" Female NPT with 20 Mesh Screen	100 PSI	EPDM FKM Gaskets Available
LSQ200-30	2" x 2" Female NPT with 30 Mesh Screen	100 PSI	EPDM FKM Gaskets Available
LSQ200-50	2" x 2" Female NPT with 50 Mesh Screen	100 PSI	EPDM FKM Gaskets Available
LSQ200-80	2" x 2" Female NPT with 80 Mesh Screen	100 PSI	EPDM FKM Gaskets Available


Replacement Parts for LSQ150 & LSQ200
Item	Part Number	Description	Quantity Required
1	LSQ200-B	2" LSQ Body	1
2	LS206	6 Mesh Screen	1
2	LS212	12 Mesh Screen	1
2	LS220	20 Mesh Screen	1
2	LS230	30 Mesh Screen	1
2	LS250	50 Mesh Screen	1
2	LS280	80 Mesh Screen	1
2	LS2120	120 Mesh Screen	1
2	LS2150	150 Mesh Screen	1
3	LSQ200-G	2" EPDM Gasket	1
4	300P	SS Cam Pin	1
5	300K	3" SS Cam Arm w/Ring	1
6	LSQ200R1	EPDM for Clean Out Plug	1
6	13778V	O-Ring	1
8	LSQ200-C	2" Cap	1

NOTE: Items marked with asterisk* include parts 3, 4, 5, 6 and 7.

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
