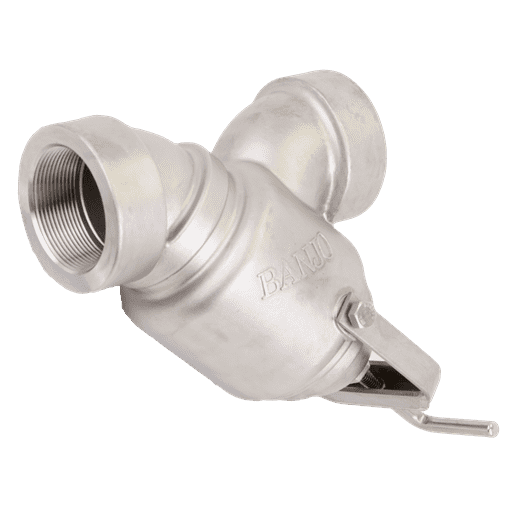

LSS300-BC Banjo Stainless Steel Y Strainer - Body, Cap & Gaskets

LSS300-BC by Banjo | Line Y Strainer | 3" Body, Cap & Gaskets | Gasket: EPDM | 225 PSI | 304 Stainless Steel

Save $224.41

$1,183.60

$1,183.60 - $1,183.60

$1,183.60

$959.19

$959.19 - $959.19

$959.19

Banjo Line Strainers - Y Line Strainers - 3" Female NPT - with Stainless Steel Screens - Stainless Steel

Specifications for Variant SKU: LSS300-BC Banjo

Applications:

Fluids
Agriculture
Industrial

Features:

WARNING: 3" Polypropylene "Y" Strainer to be used on suction side or non-pressure side in all applications.
NOTE: 316 Stainless steel screens sold separately. See chart below
EPDM gaskets standard FKM (viton type) available
Corrosion resistant
Clean-out plug
Female NPT x Female NPT
Convenient color coded screens for easy mesh size identification. (Refer to chart below)

Other Data:

Screens		Standard Meshes & Data (For General Use Only)
Mesh Size	Rib Color	Microns	Wire Diameter	Opening	% Open Area
6 Mesh	White	3360	.035	.132	62.7
8 Mesh	-	2380	.028	.097	60.2
12 Mesh	Black	1680	.023	.060	51.8
20 Mesh	Beige	841	.016	.034	46.2
30 Mesh	Flame Red	595	.012	.021	40.8
50 Mesh	Gentian Blue	297	.009	.011	30.3


Part Number	Item Number	Description	Max PSI
LSS300-S	4	EPDM Screen Seal	225 PSI
LSS300-SV	4	FKM (viton type) Screen Seal	225 PSI
LSS300-G	5	EPDM Cap Gasket	225 PSI
LSS300-GV	5	FKM (viton type) Cap Gasket	225 PSI
LSS300-H	6	Handle/Clamp Assembly	N/A
LSS306	7	6 Mesh SS Screen	N/A
LSS308	7	8 Mesh SS Screen	N/A
LSS312	7	12 Mesh SS Screen	N/A
LSS320	7	20 Mesh SS Screen	N/A
LSS330	7	30 Mesh SS Screen	N/A
LSS350	7	50 Mesh SS Screen	N/A

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
