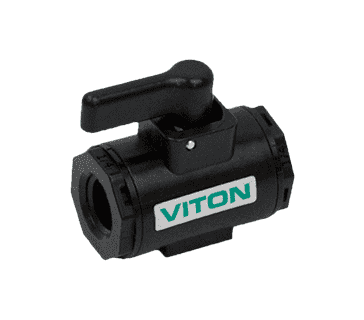

LV050V Banjo Polypropylene Micro Valve - 1/2" Female NPT x 1/2" Female NPT - Opening Thru Ball: 15/32" - 300 PSI

LV050V by Banjo | Micro Valve | 1/2" Female NPT x 1/2" Female NPT | Opening Thru Ball: 15/32" | 300 PSI | Polypropylene | Pack of 10

Save $25.78 Save $25.78
$191.51
$191.51 - $191.51
$191.51
$165.73
$165.73 - $165.73
$165.73
Banjo Valves - Micro Valves - Polypropylene - Female NPT x Female NPT

Package Quantity: 10 EA

Specifications for Variant SKU: LV050V Banjo | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • 90° rotating handle
  • Precision molded polypropylene is reinforced with fiberglass for additional strength.
  • Standard FKM (viton type) seats and O-rings.
  • Maximum operating pressure 300 PSI

Part Number Female NPT Opening Thru Ball Max PSI
LV025V 1/4" x 1/4" 3/8" 300 PSI
LV038V 3/8" x 3/8" 3/8" 300 PSI
LV050V 1/2" x 1/2" 15/32" 300 PSI
LV050SLV† 1/2" x 1/2" x 1/2" 1/2" 300 PSI
LV050SLLV*† 1/2" x 1/2" x 1/2" N/A 300 PSI

*With Locking Handle † Side Load

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
