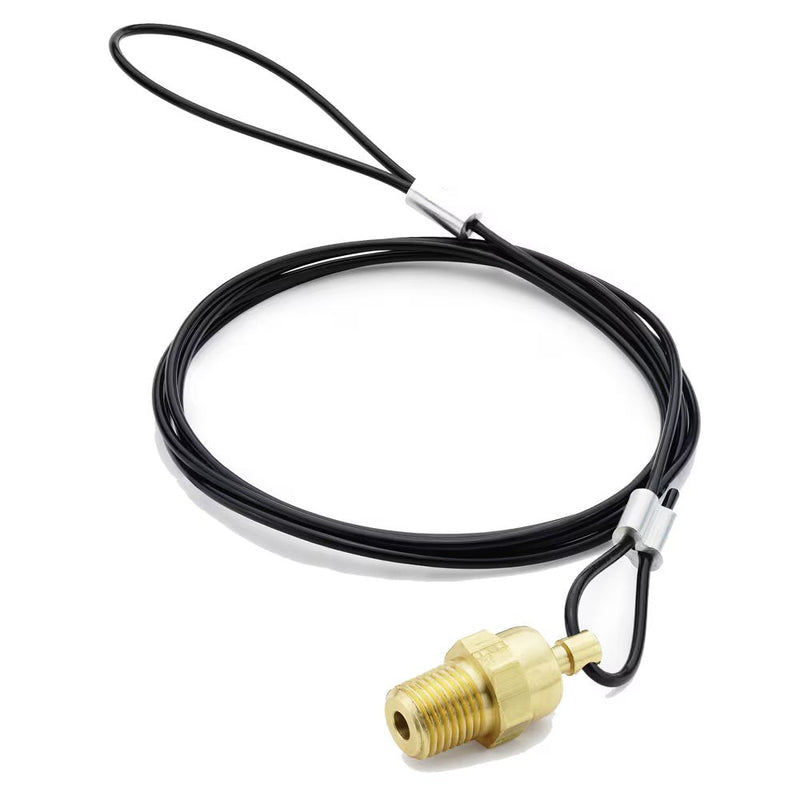

LV91-4-036 by Parker | Truck Valves & Lanyard Valve | 1/4" Male Pipe Thread | 36" Cable Length | Brass

LV91-4-036 by Parker | Truck Valves & Lanyard Valve | 1/4" Male Pipe Thread | 36" Cable Length | Brass

Save $73.71 Save $73.71
$102.55
$102.55 - $102.55
$102.55
$28.84
$28.84 - $28.84
$28.84

by Parker Hannifin
Truck Valves & Lanyard Valve:Lanyard Valve LV91
Specifications for Variant SKU: LV91-4-036 Parker
Series: LV91 Series
Shape (Orientation): No Orientation
Material(s): Brass
Special Properties: Valved
Product Features: Truck Valves
  • Brass Body and Stem
  • Flare, Hose, Tube and Pipe Connections
  • Round and Pin Handles

Lanyard Valve
  • Low Temperature Seal
  • All Brass Body
  • Manual Release
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Water
  • Oil
  • Coolant Lines
Truck Valve Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -30° to +250° F (-34.4° to +121.1° C)
Lanyard Valve Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Part Number Tube Size Pipe Thread Flow L M N
LV91-4-036 1/4" 36"
LV91-4-048 1/4" 48"
LV91-4-060 1/4" 60"
LV91HF-4-SUB 1/4" -

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
