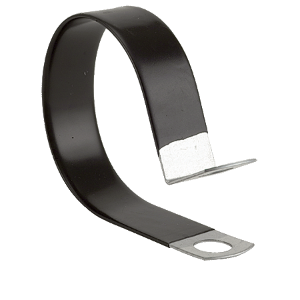

LVZ-19 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diameter: 1-3/16" | Galvanized Steel
LVZ-19 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diameter: 1-3/16" | Galvanized Steel

LVZ-19 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diameter: 1-3/16" | Galvanized Steel

Save $0.67 Save $0.67
$1.67
$1.67 - $1.67
$1.67
$1.00
$1.00 - $1.00
$1.00

Foster
LVZ Loop Clamps | Vinyl Dipped Galvanized Steel 1" (25mm) Wide
Specifications for Variant SKU: LVZ-19 Zsi-Foster
Series: LVZ Series
Material(s): Galvanized Steel, PVC
Special Properties: Coated
Clamp Width: 1
Maximum Clamp I.D.: 1.1875
Features:
  • Heavy duty steel clamp
  • Galvanized Steel
  • PVC coated, black color
  • Temperature range -25°F to +160°F ( -32°C to +71°C)

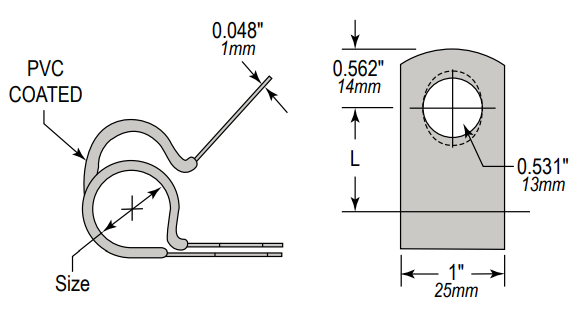

Part Number Clamp ID L
LVZ-18 1-1/8" 1.218"
LVZ-19 1-3/16" 1.250"
LVZ-20 1-1/4" 1.281"
LVZ-21 1-5/16" 1.312"
LVZ-24 1-1/2" 1.406"
LVZ-25 1-9/16" 1.437"
LVZ-28 1-3/4" 1.531"
LVZ-29 1-13/16" 1.562"
LVZ-32 2" 1.687"
LVZ-33 2-1/16" 1.718"
LVZ-36 2-1/4" 1.812"
LVZ-40 2-1/2" 1.937"
LVZ-42 2-5/8" 2.00"
LVZ-44 2-3/4" 2.062"
LVZ-46 2-7/8" 2.125"
LVZ-57 3-9/16" 2.437"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
